Proaim Trailer Hitch Adapter/Tow Bar for Car Camera Rigging | 2" Hitch, 42mm Speed Rail Clamp, 2200 lb Payload

Proaim Trailer Hitch Adapter/Tow Bar for Car Camera Rigging | 2" Hitch, 42mm Speed Rail Clamp, 2200 lb Payload

Gimbal Mounting Accessory for Car/Vehicle

US $98.00 - US $98.00
US $98.00
US $98.00 - US $98.00
US $98.00
SKU : P-THA
Also Available in Warehouses:    USA   Canada   Europe
Description

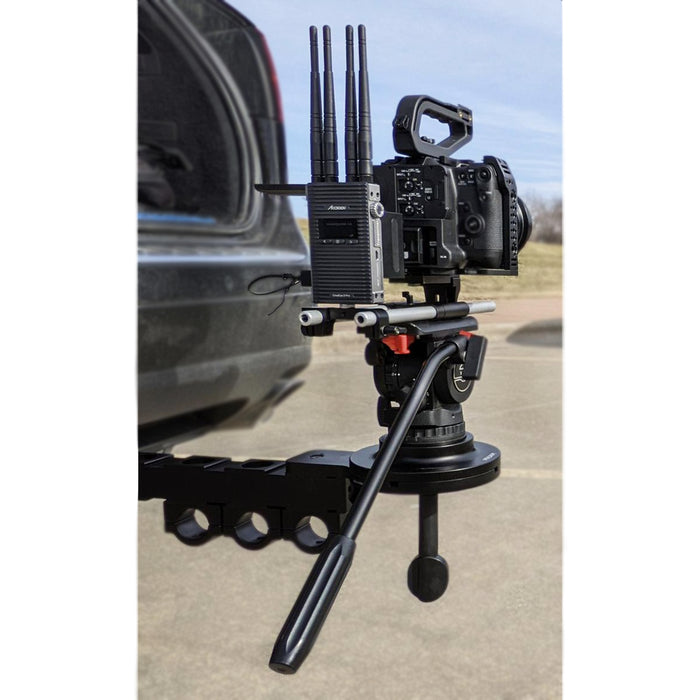

Strong Foundation for Rigging Camera Gimbals on Car/Vehicle

01.

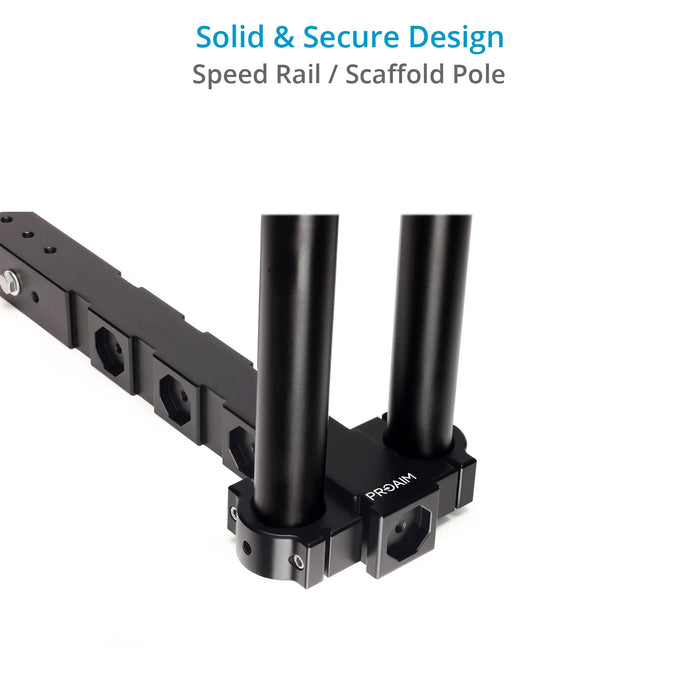

Safe, Secure Design

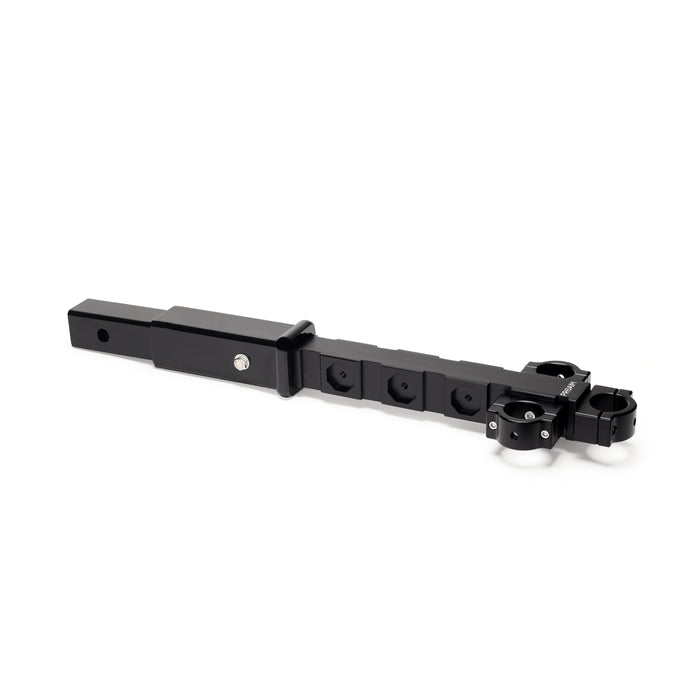

Proaim Trailer Hitch Adapter is the foundation of rigging camera setups on any car or vehicle.

It attaches to the tow bar of your car solidly and supports the entire rigging setup effectively.

Machined from solid aluminum, the Hitch Adapter takes 1000 kg / 2205 lb Payload.

Proaim Trailer Hitch Adapter/Tow Bar for Car Camera Rigging
Proaim Trailer Hitch Adapter/Tow Bar for Car Camera Rigging

02.

Strongest Connection to Any Vehicle

The Trailer Hitch adapter is modular and provides the most robust connection to any vehicle that has a standard 2″ hitch.

Two stainless high grade 1/2″ bolts are used to make the connection.

Trailer Hitch offers Zero flex, no vibration, no sway due to the bolted mounting design.

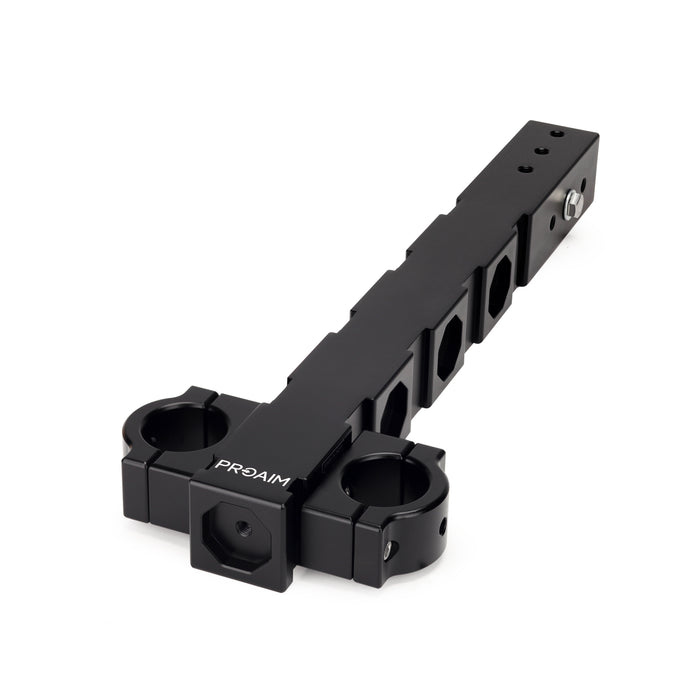

Speed Clamp uses four stainless steel pins to prevent any twisting of the clamp and lets you mount in 90 degree and 45 degree increments.

03.

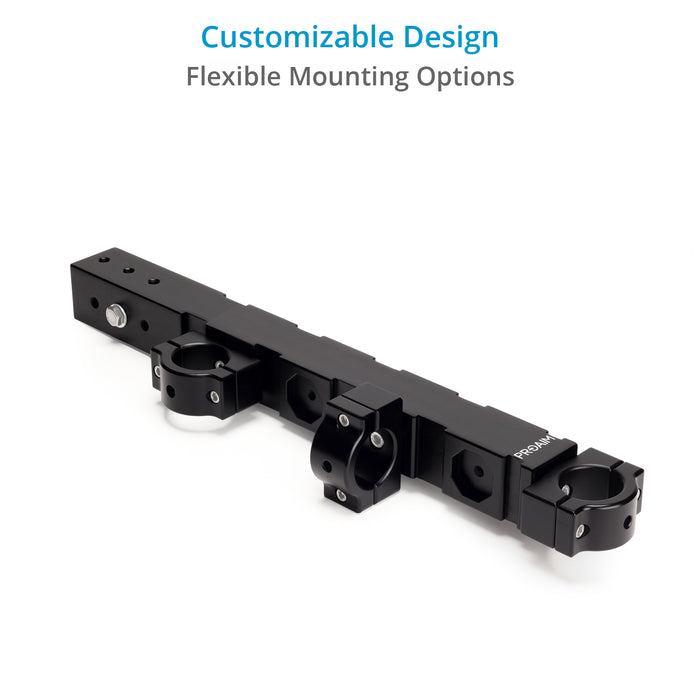

Flexible Mounting

The Hitch Adapter is customizable with four mounting points for the speed rail pipe clamps and additional mounting on the front.

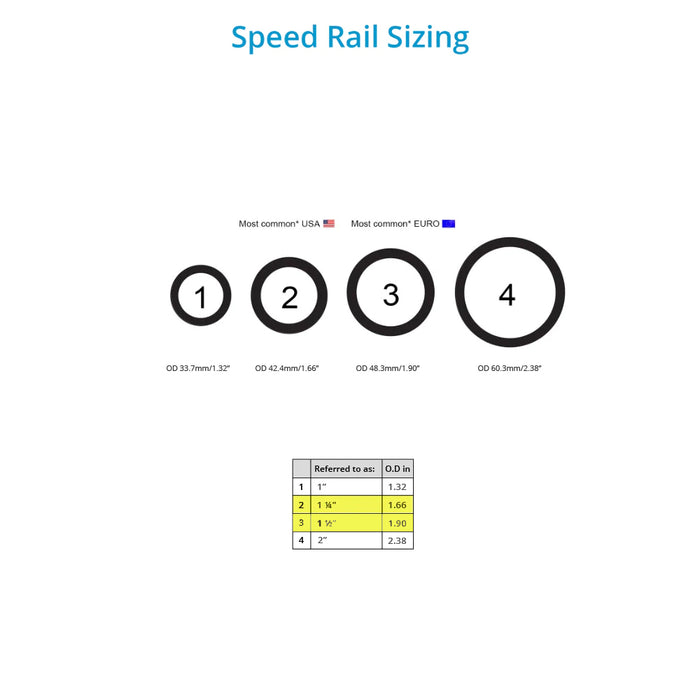

You can easily use the standard Speed Rail Size (42.4mm). Since the pipe clamps can be bolted on various positions, you can change the angle/position of the speed rail.

Specifications

Construction

  Solid Aluminum

Compatibility

  2" / 5 cm Vehicle Trailer Hitches
  1.65" / 42 mm Speed Rail Pipe Clamps

Load Capacity

  1000 kg / 2205 lb

Dimensions (LxWxH)

  18.5 x 2 x 2" / 47 x 5 x 5 cm

Product Weight

  3.6 kg / 7.9 lb

In the box

Proaim Trailer Hitch 42.4mm Adapter
6mm allen key
3/16 allen key

User manual

  Proaim Trailer Hitch Adapter Tow Bar (P-THA)

delivery

Guaranteed Fast Delivery
For all orders
customer service

Quick and Efficient
Customer service
easy returns

Easy Returns
Up to 30 days
warranty

1-Year Warranty
On All Products

Q&A

Ask a Question



  • Hello, what do i need to mount the Cyrus to the trailer hitch adapter?

    You can mount the Proaim Cyrus Camera Vibration Isolator with Proaim Trailer Hitch Adaptor / Tow Bar by the help of Proaim Mitchell Hitch Mount and Proaim Mitchell Washer & 3/8"-16 Tie-Down Knob.
