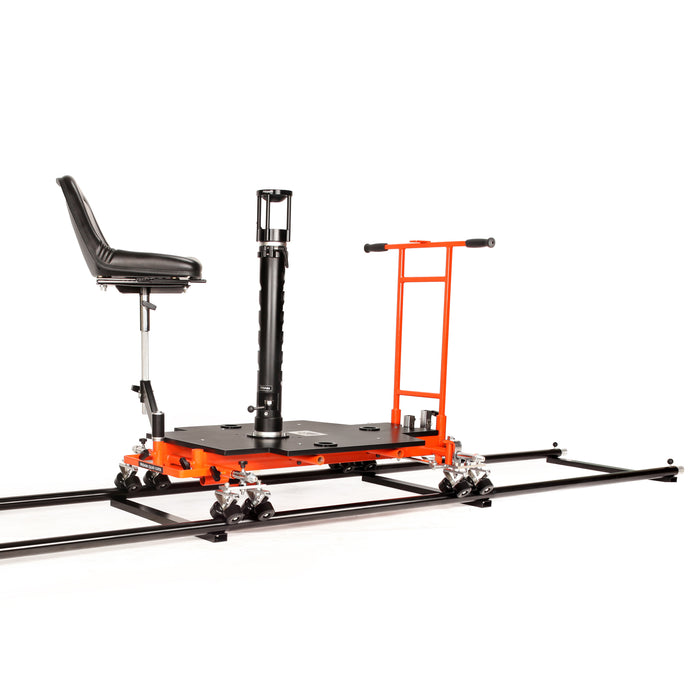

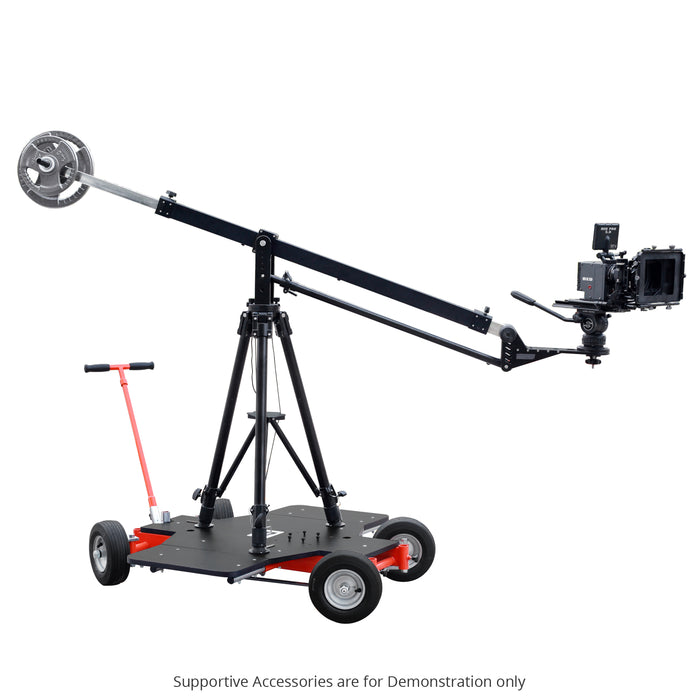

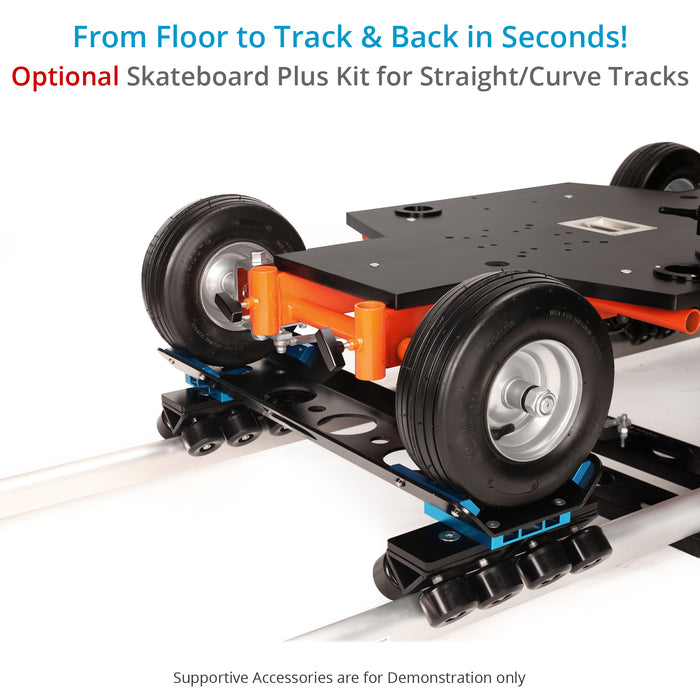

Quad Dolly can be equipped with Skateboard Wheels or Standard Track Wheels for use on tracks or Pneumatic Wheels for standard floor use. You can use a tripod, a bazooka, a slider, or any other standard Euro Mount Accessory and configure it your needs.

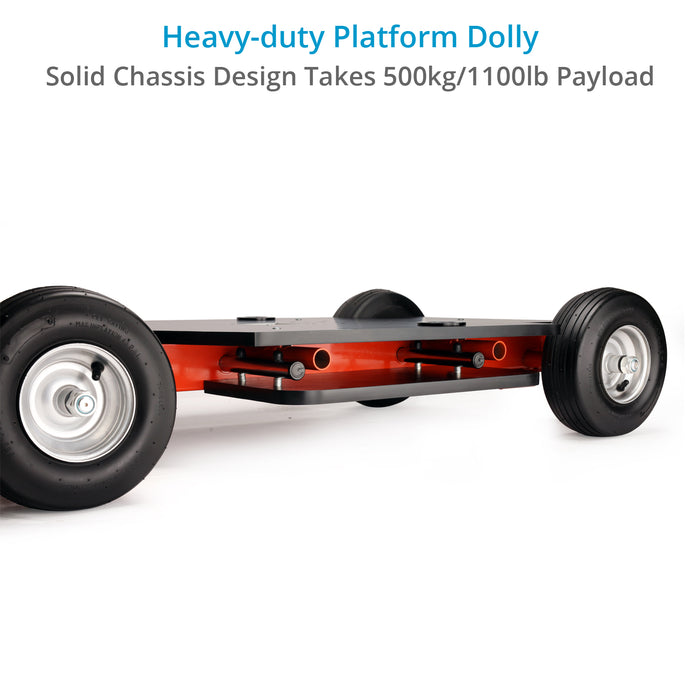

The Quad Dolly has an extremely solid Chassis Design, and the upper base is made of Solid Wood with high-quality finish. This makes it extremely robust and can easily handle payloads of up to 500 kg/1100 lb.
The platform height of the Dolly is merely 21cm/8" from the ground. We wanted to make it as low as possible to help you capture those low shots very easily.
Chassis: Solid Metal
Platform: Wooden
up to 500kg/1100lb
Diameter-11”
Thickness -4”
Silver Steel Rim-5”
21cm
270°
24.5 -25’’
30mm - 48.3mm
Proaim Stream Track (TK-STRS-00), (TRK-16-25)
Box 1: 53.2kg / 117lb
Box 2: 30.2 kg / 66.6lb
Box 1: 133 x 85 x 28 cm
Box 2: 100 x 74 x 23 cm
High-Grade CNC Aluminum
42”/107cm
27”/69cm
200kg/441lb
100mm

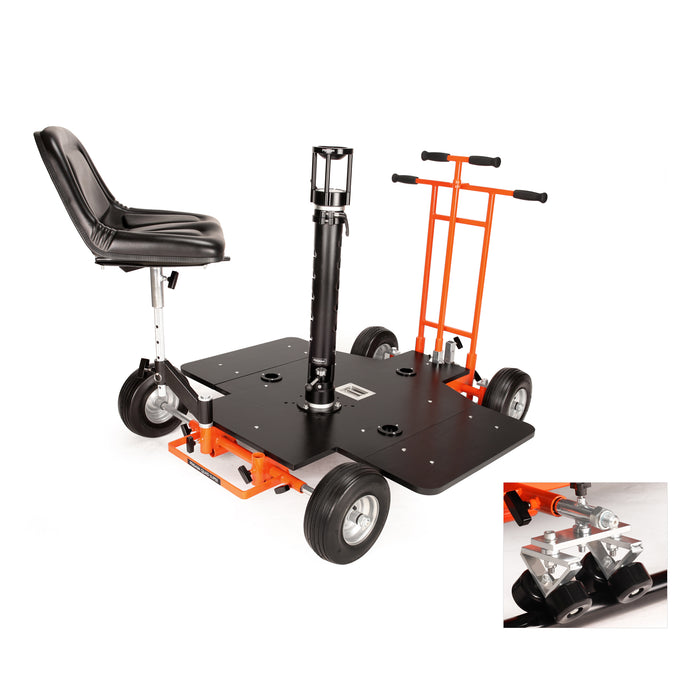

Proaim Quad Super Bazooka Doorway Dolly
Chair
Steering Push/Pull Bar
Telescopic Bazooka (BZ-286-00)
100mm Height Riser (BA-267-00)

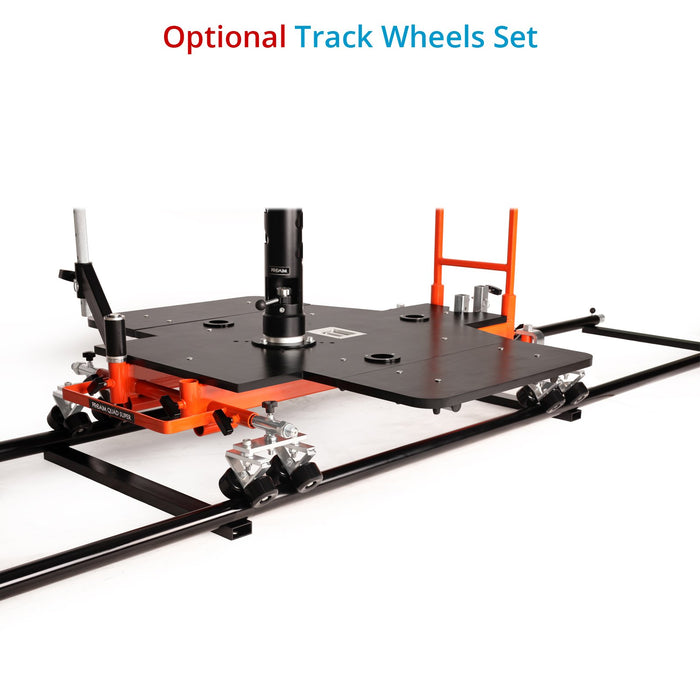

4 x Track Wheels (P-TWS-QS)
01.
Manoeuvres on Small Sets Like no Other Platform Dolly
We designed the Quad Doorway Dolly while keeping mobility and easy operation in mind.

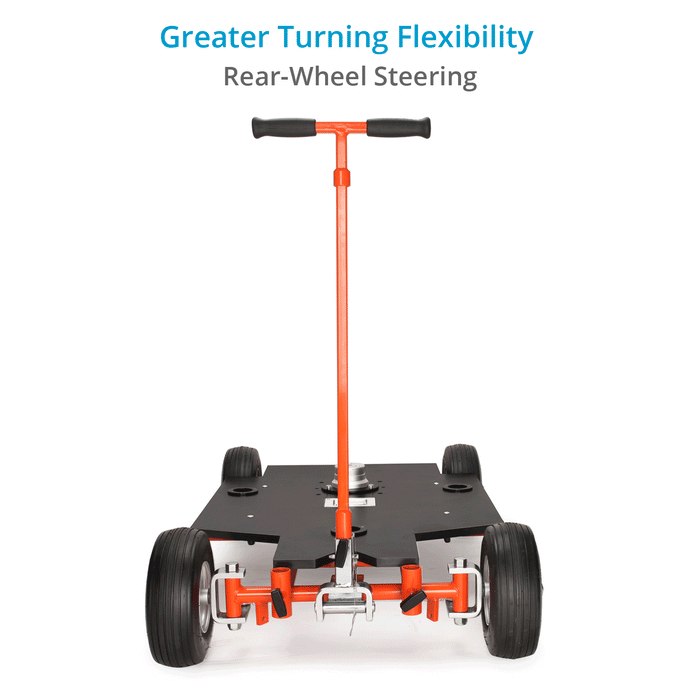

With an All-wheel steering system, the Proaim Quad Dolly maneuvers on small sets like no other platform dolly. It's capable of negotiating an extremely tight circle of 2.3 m (7.5 ft).

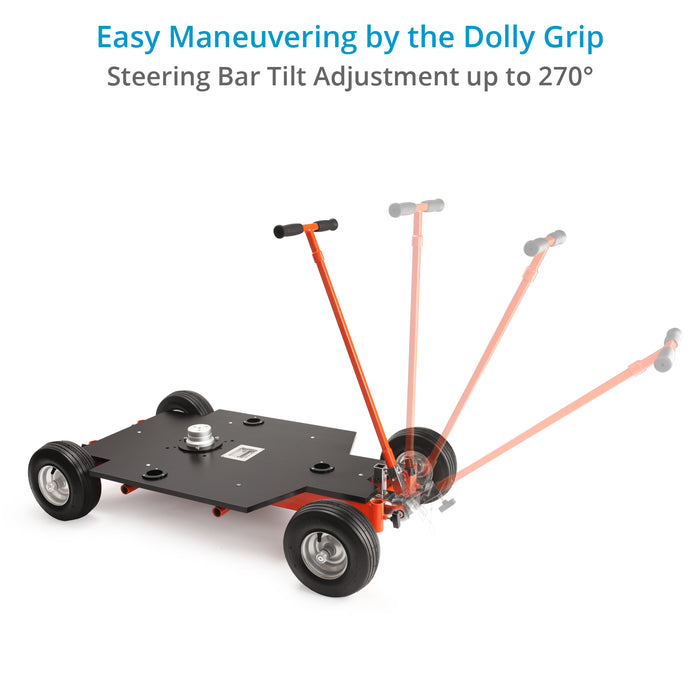

Steering Push bar allows pushing/pulling the Dolly on the ground with standard or on the track extremely smooth and easy.
02.
Create the Shot you Envision
The Quad Dolly can be configured for use with multiple setups such as slider, jibs, tripods, and geared heads which enables you to bring the director's vision to reality. We offer multiple accessories at highly affordable prices so that you can calibrate the Dolly exactly to your needs.
03.
Let Small Become Big, Double the Size

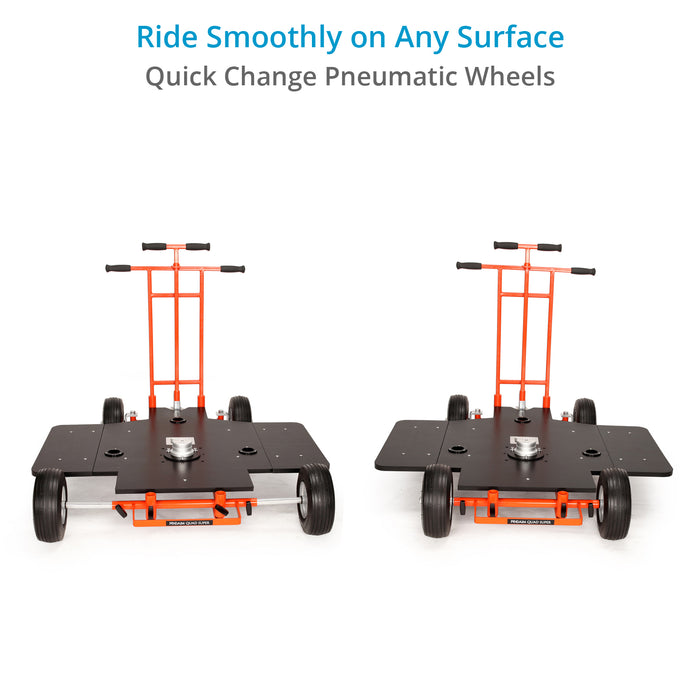

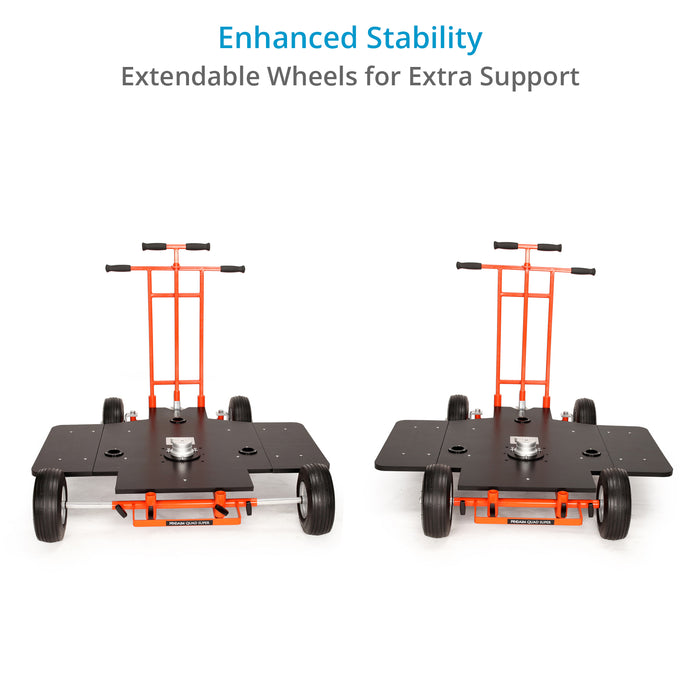

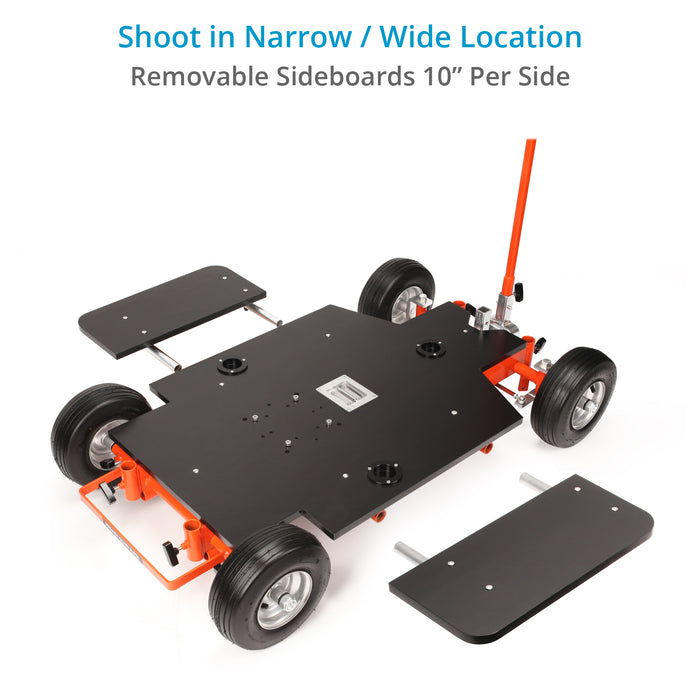

The Quad Dolly comes with removable sideboards that add an extra 10" per side for increased platform width to enable the Cameraman and the assistant to stand, sit or even kneel on the Solid Platform.
04.

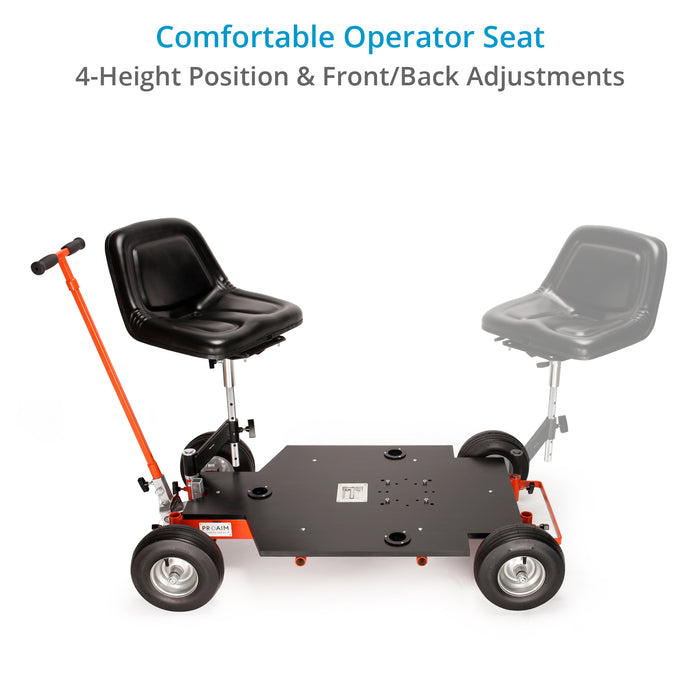

The Most Comfortable Dolly Seat
We understand how tiring a whole day shooting can be. The Quad Dolly comes with a thickly padded cushioned seat which provides exceptionally comfortable seating to the camera operator. The seat mounts in 4 different positions allowing you to achieve a variety of camera angles. The seat is also height-adjustable for an optimal seating position according to the operator.
Ans: The bazooka can take upto 200kg/441lb camera weight.
Ans: The platform seat can easily hold upto 450lbs.
Ans: Yes, it’s absolutely stable in any kind of moves.
Ans: The dolly and seat are made up of steel. The bazooka is made up of Aluminum, Floor wheels are air filled pneumatic wheels and all fasteners are of stainless steel (SS) for more durability.
Ans: The bazooka can be extended upto 46”.
Ans: Yes, we sell a track fo this dolly. You can check it at the following link :
Proaim 16ft Heavy Duty Camera Dolly Track
Ans: No, there will be no problem while using more than one track. We provide the supports that help to keep the track in a stable position.
Ans: Yes, you can use a tripod with this dolly. You just need to detach the bazooka from the dolly in order to attach the tripod stand onto the dolly.
Ans: The central distance of this dolly is 25”.
Ans: The bowl accepts 100mm fluid head only.
Ans: Yes, the seat is 360” rotatable.
Ans: Yes, the dolly will work on flexi track or with curved track with central track distance of 24" - 25".
Ans: The dia of track is 1.77”.
Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.
Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
| Guaranteed Fast Delivery |
 | Quick and Efficient |
| Easy Returns |
| 1-Year Warranty |
A wonderfully budget dolly. Make sure you have a 100mm bowl adapter or fluid head with a very very short kepper rod for the bazooka mount. I used the Benro 100mm half ball adapter. Very large shipment and heavy. Seat is very large and comfortable.
what are the physical dimensions of the dolly--length and width, without the side add-ons?
The length of the dolly platform without the side add-ons is 46" and the width is 21"
How much camera weight will the bazooka hold?
The bazooka can take upto 200kg/441lb camera weight.
What weight will be the platform seat hold?
The platform seat can easily hold upto 450lbs.
What materials are used in its construction?
The dolly and seat are made up of steel. The bazooka is made up of Aluminum, Floor wheels are air filled pneumatic wheels and all fasteners are of stainless steel (SS) for more durability.
Can you sell a track with this dolly?
Yes, we sell a track fo this dolly. You can check it at the following link : https://www.proaim.com/products/proaim-16ft-heavy-duty-camera-dolly-track
Will there be any alignment problem in using more than one track?
No, there will be no problem while using more than one track. We provide the supports that help to keep the track in a stable position.
Can I use tripod with this dolly?
Yes, you can use a tripod with this dolly. You just need to detach the bazooka from the dolly in order to attach the tripod stand onto the dolly.
Will 75mm Fluid head fit on the bowl?
The bowl accepts 100mm fluid head only.
Will this dolly work on flexi or curved track?
Yes, the dolly will work on flexi track but it will not work with curved track.
What is the warranty?
We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
Can I use Bazooka with the 12\' comet crane with base to get a higher reach?

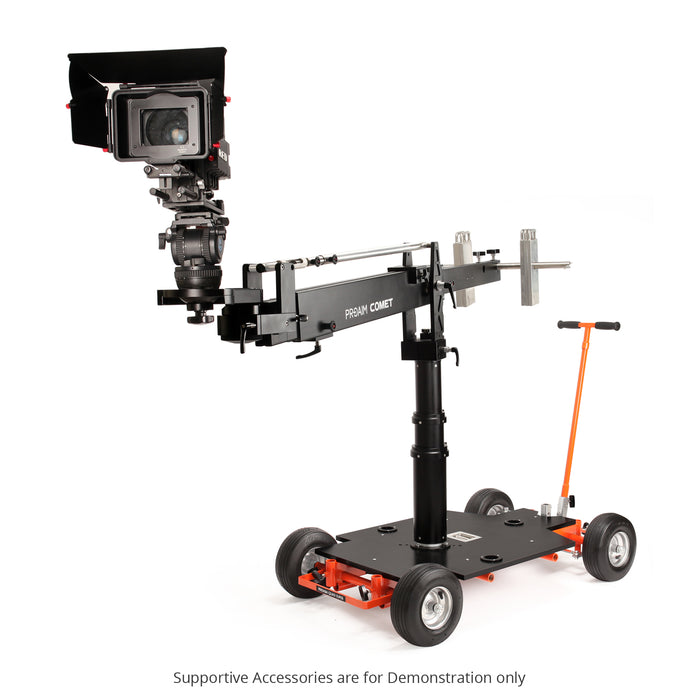

Yes, you can attach the Proaim Comet 12ft Euro/Elemac Mount Camera Jib Crane JB-COMT-01 with Proaim Telescopic 27"- 42" Bazooka for Camera Dolly (BZ-286-00)
Can I use Bazooka with the 12\' comet crane with base to get a higher reach?
Yes, you can attach the Proaim Comet 12ft Euro/Elemac Mount Camera Jib Crane JB-COMT-01 with Proaim Telescopic 27"- 42" Bazooka for Camera Dolly (BZ-286-00)
Is Proaim Quad Super Bazooka Doorway Dolly can be used with 150mm fluidhead ?
Yes, Proaim Quad Super Bazooka Doorway Dolly can be used with 150mm fluidhead with the help of 150mm bowl rizer adapter.
\"Hi will the Proaim Telescopic 27\"\"- 42\"\" Bazooka for Camera Dolly | Euro/Elemac Mount fit on the Polaris dolly ?
"Yes, Proaim Telescopic 27""- 42"" Bazooka BZ-286-00 will work with Proaim Polaris Portable Dolly DL-PLRS-01 with the help of Proaim Mitchell to Euro/Elemac Adapter EM-292-00.
Which tracks are compatible with Proaim Quad Super Bazooka Doorway Dolly ?

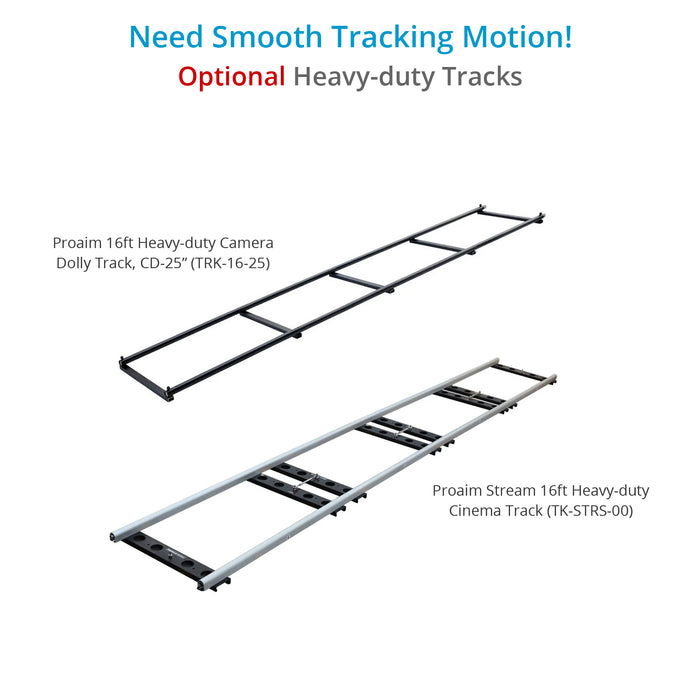

Proaim Stream 16ft Tracks & Proaim 16ft Heavy-duty Tracks are compatible with P-QUAD-SB dolly.
