Proaim Hard Mount Kit for Camera Stabilizer Arm | For Speed Rail & Mitchell Gear

Compatible Speed Rail / Scaffold Pole: ⌀42-50mm & 38mm

Original price US $175.00 - Original price US $175.00
Original price
US $175.00
US $175.00 - US $175.00
Current price US $175.00
SKU : P-HMK-01

01.

INCREASE THE VERSATILITY OF YOUR STABILIZER ARM BY MOUNTING TO NEARLY ANYTHING.

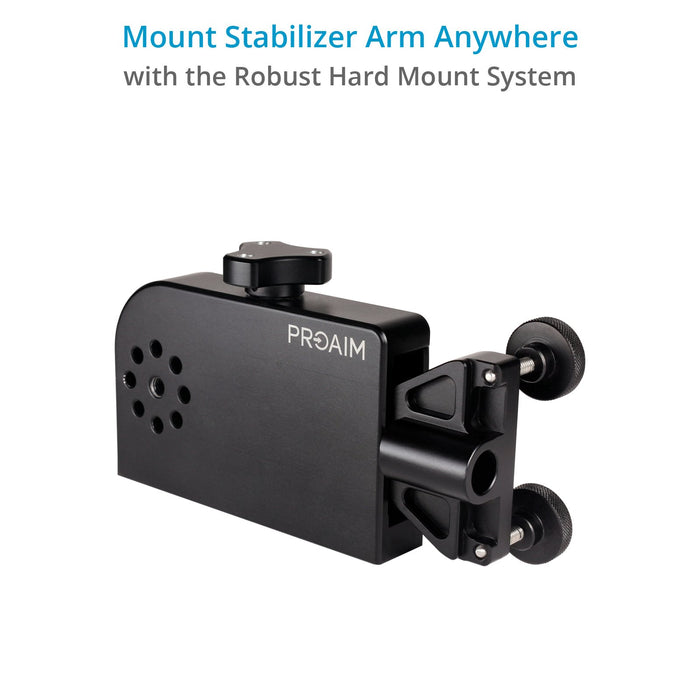

The Proaim Hard Mount Kit allows a Stabilizing arm to be mounted to nearly any gear.

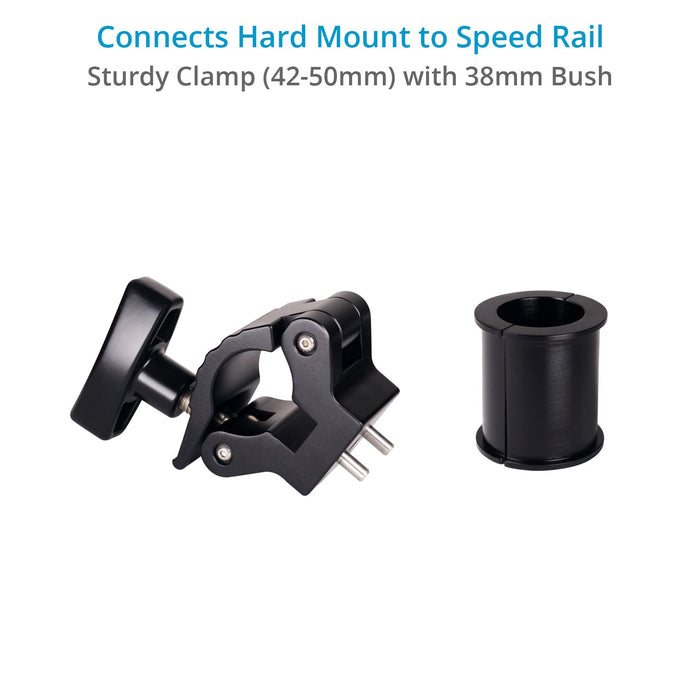

It pairs with the included Speed Rail Clamp to be affixed to any Speed Rail in five different mounting angles.
Speed Rail Clamp adapts 42-50mm Speed rails, and by pairing with reducer bush, it also adapts 38mm rails. .

Proaim Hard Mount Kit for Stabilizer Arm
Proaim Hard Mount Kit for Stabilizer Arm

02.

EASY MOUNTING ON MITCHELL/EURO GEAR

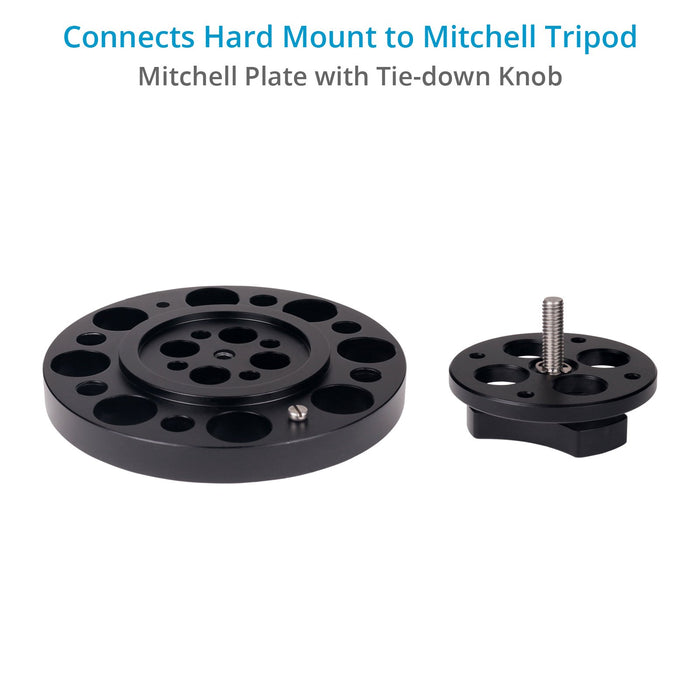

The Hard mount pairs with included Mitchell Male Plate to be mounted to a female Mitchell Gear.
The Tie-down knob securely affixes the Hard mount system with Mitchell support mount.
It also adapts to a Euro mount on a Dolly or to a Bazooka via the optional Mitchell to Euro Adapter.

03.

QUICK BALANCING
The Hard Mount is one of the rigid mounts available with a tilting end block, which enables a 40-degree range of motion to help you stay balanced.
This adjustment makes your sled stay in front of you. Instead of going back and forth on the arm adjustment, now you can do it directly on this block.

Proaim Hard Mount Kit for Stabilizer Arm
Proaim Hard Mount Kit for Stabilizer Arm
Proaim Hard Mount Kit for Stabilizer Arm
Proaim Hard Mount Kit for Stabilizer Arm

SPECIFICATIONS

Construction

  High-grade CNC Aluminum

Compatible Stabilizer Arm

  Steadicam Arms with Pin mounting

Compatible Speed Rail

  42-50mm and 38mm

Product weight (without packing)

  3.400kg / 7.49lb

IN THE BOX

Proaim Hard Mount
Mitchell Male Plate
Sturdy Clamp (42-50mm)
38mm Bush

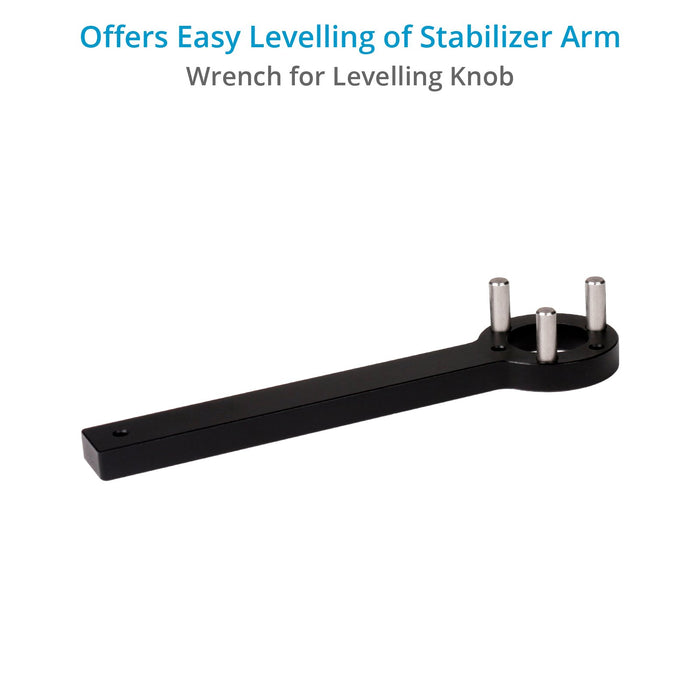

Hard Mount Wrench
Allen Key 8mm

USER MANUAL


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • Is an adapter being made for the CameTV arm?

    This is compatible with Steadicam Arms with Pin mounting.

  • Is your Proaim Hard Mount Kit is compatible with the Tilta Float arm ?

    No, the Proaim Hard Mount Kit (P-HMK-01) is not compatible with the Tilta Float arm as the mounting of the arm is different.

  • Is it also fit for Steadicam G70 arm?

    The Proaim Hard Mount P-HMK-01 Kit has an Arm Socket pin of 16mm or 5/8". If the Steadicam G70 has the same size, then it will fit perfectly.
