Proaim Cyrus Camera Vibration Isolator for Gimbals, 5-50kg/11-110lb

US $375.00 - US $375.00

US $375.00

US $375.00 - US $375.00

US $375.00

SKU : VI-CYRS-01

Qty

CLICK to Discover Our Complete Shock Absorbing Range!

Built For The Fearless

The Most Adaptable Isolator EVER!

The Ultimate Adventure-Ready Companion!

Capture Naturally Smooth Shots

No moving shot is too rough for Proaim Cyrus, it absorbs all of the bumps and vibrations.

Highly Adaptable

Adapts Any Camera Gimbal Setup ranging from 5-50kg/11-110lb.

Quick to Mount

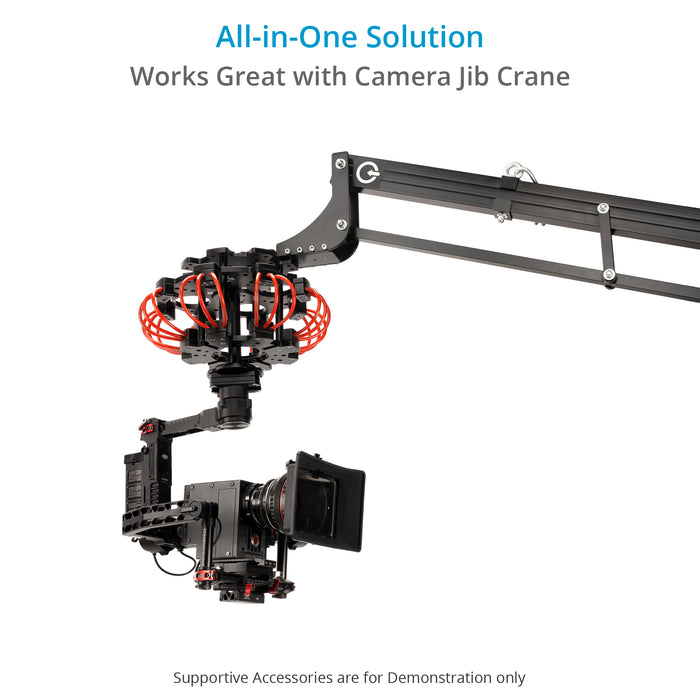

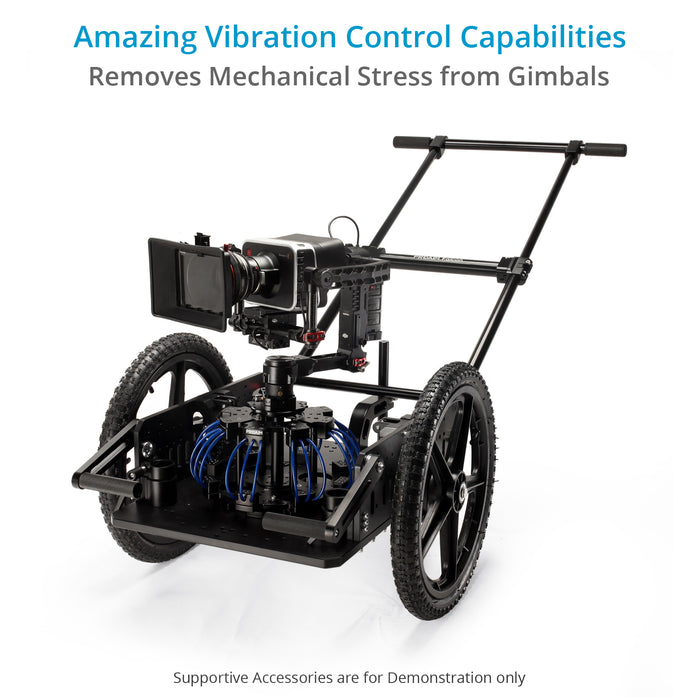

Easily mounts on Mitchell Tripods, Cranes, Jibs, Sliders, Shock Absorber Arms and Dolly Systems.

See how the Cyrus Vibration Isolator Works

Specifications

Construction

High-grade CNC Aluminum

Load Capacity

Over-slung/Under-slung: 8 Black Shock Modules: 30-50kg / 66-110lb
8 Red Shock Modules: 15-20kg / 33-44lb
8 Blue Shock Modules: 5-10kg / 11-22lb
Payload of Single Module: Single Black Shock Module: 5 kg / 11lb
Single Red Shock Module: 2.2 kg / 4.8lb
Single Blue Shock Module: 0.950 kg / 2.09lb

Mounting

Top: Mitchell
Bottom: Mitchell & 3/8”-16

Compatible Gimbals

DJI Ronin, Freefly Movi

Cable diameters (no load - load)

14.25" - 14.75"

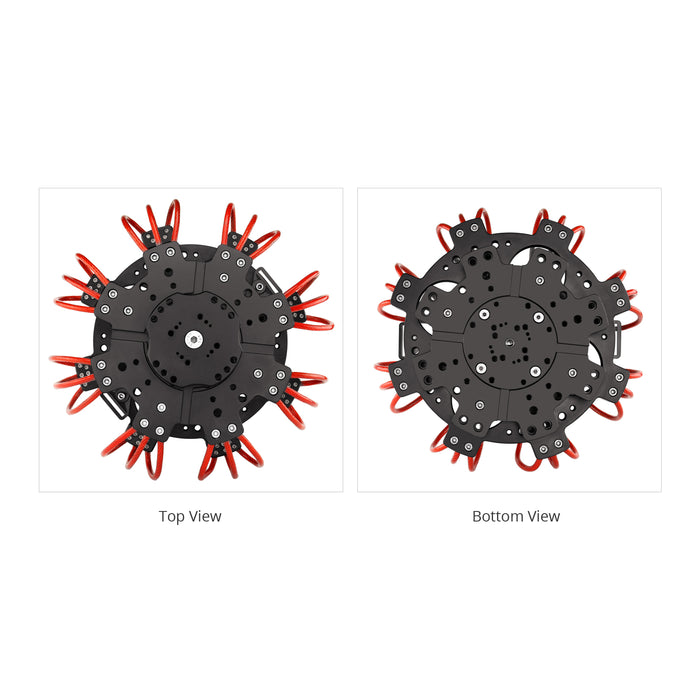

Top Plate

Diameter: 9"

Bottom Plate

Diameter: 13.25"
Diameter w/o tether point: 11.95"

Top/Bottom Plate Thickness

11.11mm

Height

Mounting Threads

1/4”-20 & 3/8”-16

Temperature Range

-20° to 50°C / -4° to +122°F

Product weight (Without Packing)

5.64kg / 12.4lb

In the Box

Cyrus Camera Vibration Isolator
8 x Heavy Modules with Tension Cables (Black)
8 x Medium Modules with Tension Cables (Red)
8 x Light Modules with Tension Cables (Blue)
Flycam Quick Release Mount for DJI Ronin (DJI-QR)
Universal Cheese Plate Adapter
6.10mm Screws - 4pcs

User Manual

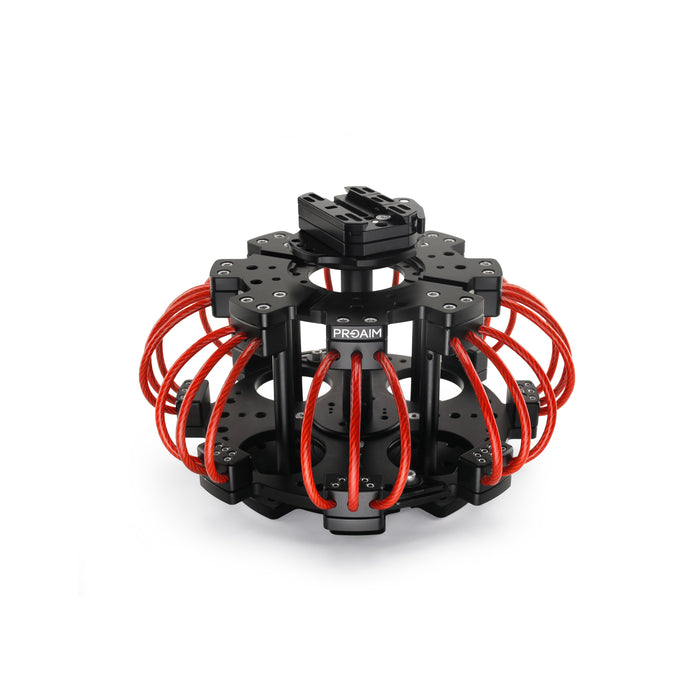

Proaim Cyrus Camera Vibration Isolator for Gimbals

01.

Exceptionally Capable Isolator System

Proaim Cyrus - the Most Versatile Camera Vibration Isolator system.
The precise engineering offers you Incredible Off-Road and All-Weather Capability.
The Safe & Secure Design - allows you to shoot with Confidence. This unique design easily handles large Remote Pan Tilt heads and Gimbal systems like the DJI Ronin or Freefly MōVI.

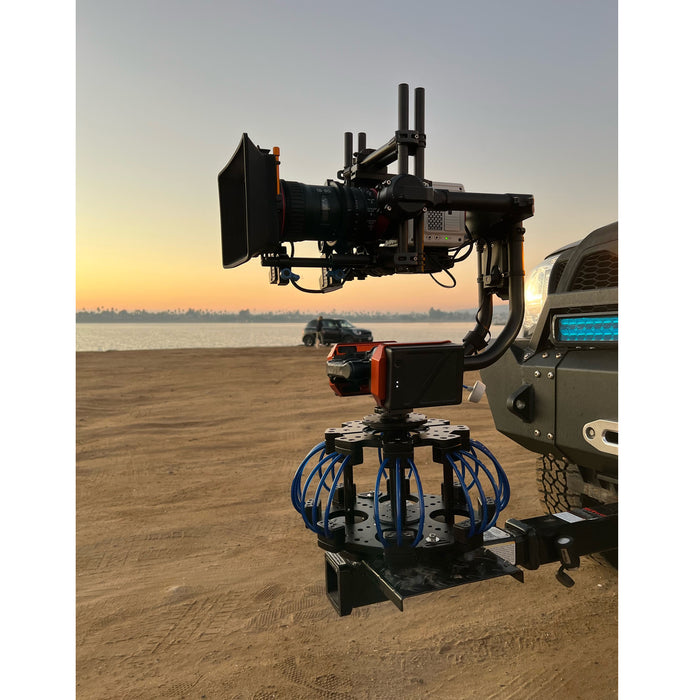

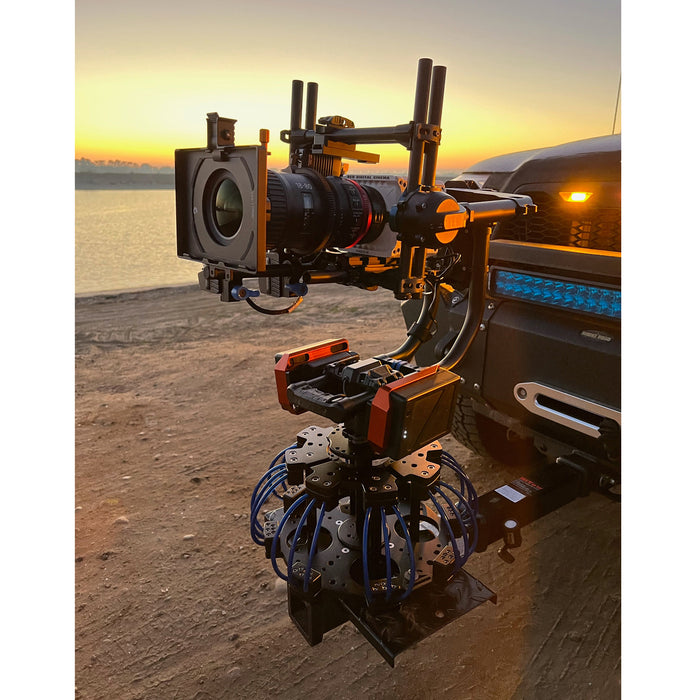

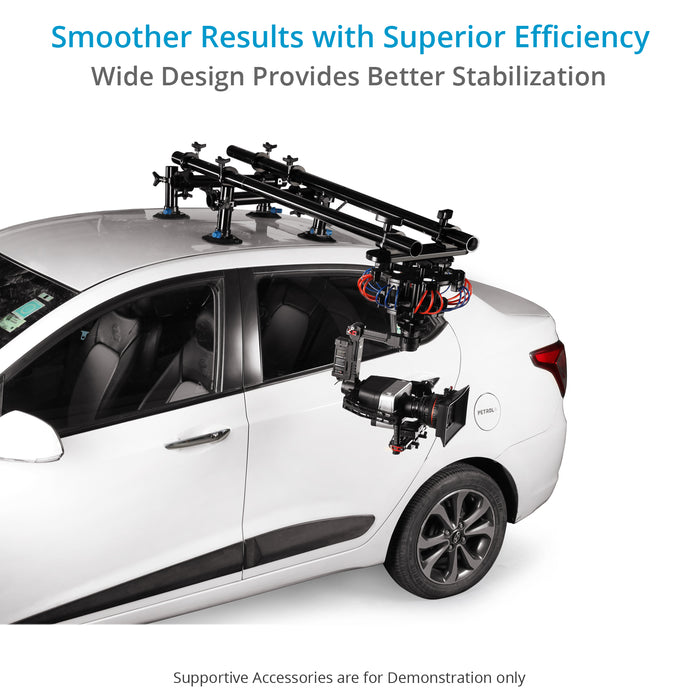

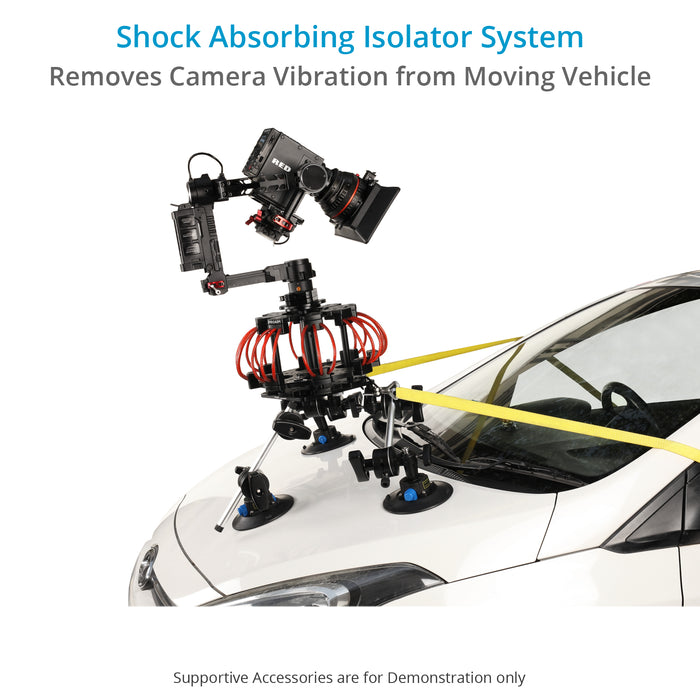

The Isolator absorbs all Jerky movements from the shots, be it Over-slung or Under-slung, whether on a vehicle, crane, jib, or a dolly.

02.

Built with Precision

The Proaim Cyrus Shock Absorbing System offers a 5-50 kg / 11-110 lb heavy payload capacity.
It has a universal 3/8”-16 screw for mounting gear or accessories.
It utilizes strategically configured Shock Modules with Tension Cables to support the gimbal & absorb inertial movements.
The Interchangeable Shock Modules allows highly fine-tuning of different camera setup weights, which adapts to 98 Combinations for different Payloads.

03.

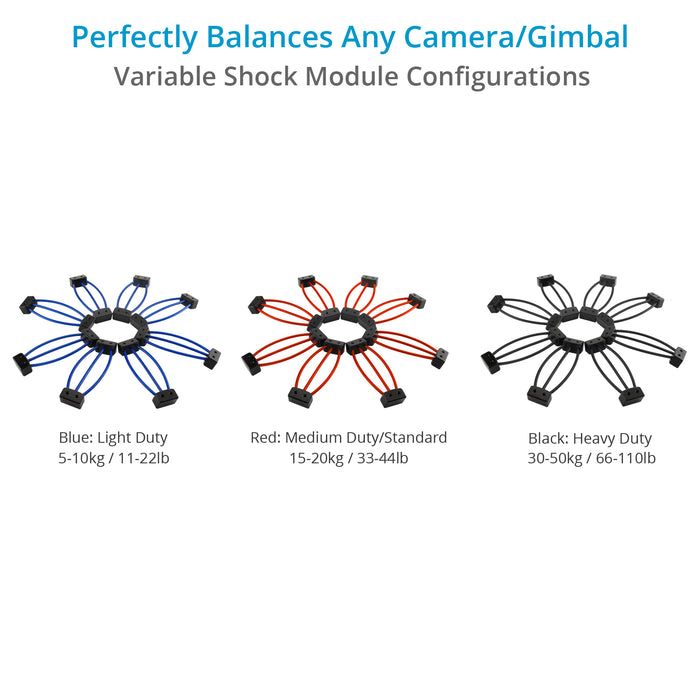

Wide Absorption Range

Interchangeable Shock Modules can be set up as 8,or 4 modules.
These modules come in three strengths: Light, Standard and Heavy duty.
These modules can also be combined with various strengths to achieve the exact payload displacement and stability you need.
Blue Light Duty: DSLR, smaller Digital Cine Cameras or hard-mounted camera without a gimbal.
Red Medium Duty/Standard: RED, Canon C300, heavy DSLRs with Cine primes with a gimbal-like a MoVI M5/M10/M15/Pro, Ronin/Ronin M/Ronin MX
Black Heavy Duty: RED, Alexa Mini, Ursa Mini Pro, Phantom Flex, etc. package with cine zoom, heavy primes and a large gimbal like a MoVI XL or Ronin 2

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Customer Reviews

5.0 Based on 1 Reviews

5 ★

100%

4 ★

3 ★

2 ★

1 ★

Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

06/06/2022

David W.

United States

Excellent Build Quality

I was surprised at how well the Isolator is built to be honest. The tolerances are great in terms of how well each piece is cut and how it all fits together. Very easy to change out the different strengths, very pleased with my purchase.

Q&A

Ask a Question

Please have more documentation and pictures of how to change from Over-slung to Under-slung

The Proaim Cyrus Camera Vibration Isolator can be used as both over-slung and underslung. Below is the image for your reference:

Overslung Use : https://prnt.sc/BEy_jX_MY3P4

Underslung Use : https://prnt.sc/HCJf8wVA6zQV
Will this work with Fisher dolly?

Yes , the Proaim Cyrus Camera Vibration Isolator VI-CYRS-01 will work with Fisher dolly but you will have to use the Proaim Mitchell Washer & 3/8"-16 Tie-Down Knob P-MTDK-01.
Could I mount this on a tripod? Or is there a model I could use on a tripod? If yes then what accessories will I need to mount the isolator on the stand?

We can mount the VI-CYRS-01 on the P-MTCL-STD with the help of a Proaim Mitchell Washer & 3/8"-16 Tie-Down Knob (P-MTDK-01)
Can Proaim Cyrus Vibration isolator be mount on Scissor crane?

Yes, Proaim Cyrus Vibration isolater can be mounted on the Proaim Scissor crane with the help of Proaim Quick Release Plate P-QRG.
Can Proaim Cyrus Vibration isolator be mount on Scissor crane?

Yes, Proaim Cyrus Vibration isolater can be mount on Scissor crane with the help of P-QRG.
Link for P-QRG : https://www.proaim.com/products/proaim-quick-release-plate-for-hand-held-gimbals
