Proaim Airwave Vibration Isolator Arm (5-30kg)

Proaim Airwave Camera Vibration Isolator Arm (5-15kg) | Customizable for 30kg Payloads

For 3-Axis Camera Gimbals - DJI Ronin, Movi & Shotover G1

Save 18% Save 18%
US $851.00
US $851.00 - US $851.00
US $851.00
US $695.00
US $695.00 - US $695.00
US $695.00
SKU : VI-252-00
Also Available in Warehouses:    USA   Canada   Europe

Don't Miss Out on the Action!

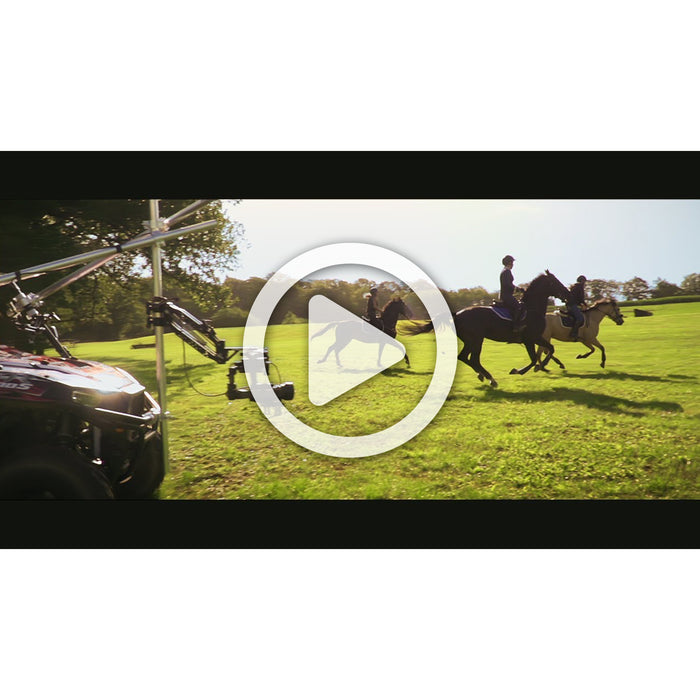

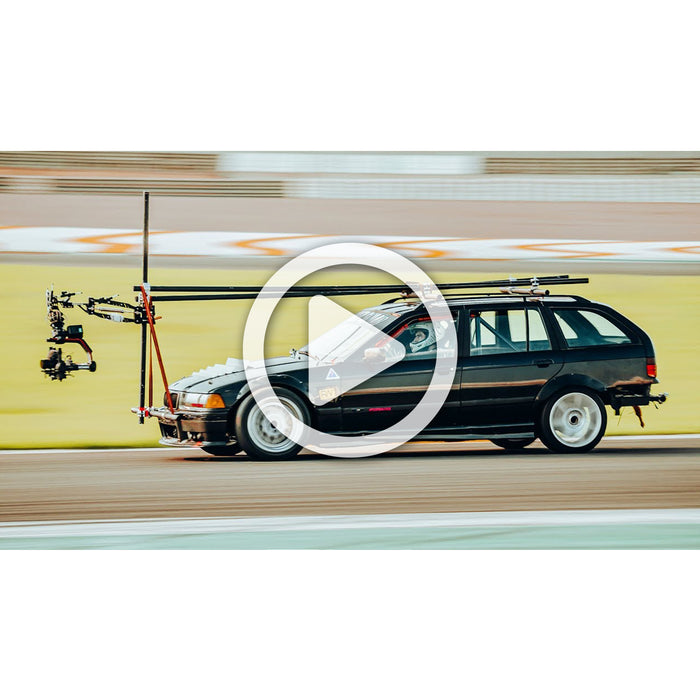

Mount the Proaim Airwave Arm onto any Moving Platform and Curate a Perfect Action or Chase Sequence.

Proaim Airwave Vibration Isolator Arm (5-30kg)

Super-Smooth Shots.

Cut Down Vibrations and other Noise from your Shot!

Proaim Airwave Vibration Isolator Arm (5-30kg)

Adaptable to all Gimbal Systems.

The Arm can be adapted to use with Ronin, Movi, Tilta or any other Gimbal System presently on the market!

Proaim Airwave Vibration Isolator Arm (5-30kg)

Calibrate to your Needs.

Micro-Adjustable Springs and Dampers help you adjust your Arm precisely to your setup.

See how the Airwave Arm Works

  Arm Specifications

Construction

  Commercial-grade Aluminum

Arm Payload

  Standard Spring Set- 5-15kg/11-33lb
  Heavy Duty Spring Set- 15-30kg/33-66lb (Optional)

Wire Isolator Payload

  5-15kg/11-33lb

Dimensions of Arm (LxWxH)

  70x7.2x 5cm/27"x2.8"x6"

Lift range

  56cm/22"

Mounts on

  1.5 - 2"/38-50mm Speed Rail

Product Weight

  8.2kg/18.04lb

Product Weight with Flight Case

  19.8kg/43.6lb

Dimensions of Flight Case (LxWxH)

  80cm x 42cm x 30cm

  Ronin Mounting Plate

Compatibility

  DJI Ronin, Ronin M & Ronin MX

Construction

  Commercial-grade Aluminum

Mounting slots

  1/4"-20 and 3/8"-16

Product Weight (without packing)

  0.15g/0.32lb

  Pole Specifications (Optional)

Construction

  Commercial-grade Aluminum

Length

  3ft/36"

Outer Diameter

  50mm

Product Weight

  2.54kg/5.58lb

  In the Box

  Stabilizing Arm
  Isolator
  Ronin Mounting Plate (DJI-QR)
  Flight Transport Case

  User Manual

  Proaim Airwave Vibration Isolator Arm

01.

Airwave Arm: A Necessity for getting Stable Shots from Moving Platforms!

Anyone that has tried to capture a good chase or action sequence from a moving platform knows how difficult it can be to get a stable and naturally smooth shot. The Proaim Airwave Arm works in conjunction with the Gimbal and assists in Removing High-Frequency Vibrations and Damping Low-Frequency Oscillations.

The Stainless-Steel Springs absorbs the shocks, bumps and jerks experienced on a moving vehicle and the Custom-Made Dampers dampen the movement of the Arm and only transfer a softer and smoother range of vibrations to the Gimbal. This softer range of vibrations can easily be corrected by the Gimbal, resulting in extremely natural and smooth video output.

Proaim Airwave Camera Vibration Isolator Arm (5-15kg) | Customizable for 30kg Payloads
Proaim Airwave Camera Vibration Isolator Arm (5-15kg) | Customizable for 30kg Payloads

02.

Best Damping, Peak Shock Absorption, Lifting Capacity and Stability

We have spent countless hours in perfecting the shock absorption and damping action of the Arm to suit varied types of setups you may want to use with the Arm. This has been made possible by designing Custom Stainless-Steel Springs and Custom Actuator Hydraulic Dampers.

To quickly adapt the Springs to the setup weight, all we need to do is, easily adjust the spring tension with the help of the included Allen Key and it'll perform optimally for loads of up to 66lbs/30kgs. Not just the Spring Tension, you can quickly adjust the damping action of all axes, vertical, tilt and roll depending on the load placed on the Arm and how fast you plan on going. The damping can be adjusted with a knob that has 22 steps, to precisely dial in the exact amount of damping you need for your shot.

03.

Quick, Easy and Reliable Setup

Mounting a Camera Setup reliably to a Moving Platform can require lots of additional grip and rigging. This takes time and doesn't guarantee that the output would be completely smooth. The Airwave Arm can be securely attached to any Scaffold Pole with quick-lock Scaff Mechanism which is extremely robust and stable.

Mounting your camera setup to your Arm is extremely easy, and you can mount the Ronin M/MX directly to the Arm with the use of Ronin Quick Release provided with the Airwave. All other Major Gimbal Systems can be mounted similarly by the use of a Quick Release plate available on our website.

Proaim Airwave Camera Vibration Isolator Arm (5-15kg) | Customizable for 30kg Payloads
Proaim Airwave Camera Vibration Isolator Arm (5-15kg) | Customizable for 30kg Payloads

04.

Protect your Gimbal, Increase its life

If you hard-mount a gimbal setup to a moving platform, any jerky movement creates an enormous amount of stress on the Motors and Bearings of the Gimbal as it tries to stabilize the camera.

High-Frequency Vibrations created by moving parts such as motors, rotor blades or propellers and Low Frequency are all absorbed by the sudden changes in direction are all absorbed by the Arm's Springs and Dampers. This reduces the stress on your gimbal motors that now have to work only to stabilize a softened range of vibrations which in turn increases the life of your Gimbal.

05.

Why the Proaim Airwave Arm would be the Best Choice?

  • Price

There is no other product in the market with this many features even close to this price range. We offer Value for Money!

  • Stainless-Steel Springs

Custom Made Stainless-Steel Springs that can withstand continuous shocks and vibrations over an extended period.

  • Custom Made Dampers

Specifically suited for this application.

  • Quickest Setup Time

One-Man Assembly!

  • Versatility

Adapt it to any Camera + Gimbal Setup ranging from 5kg to 30kgs, and it'll function exactly like you want it to.

Proaim Airwave Camera Vibration Isolator Arm (5-15kg) | Customizable for 30kg Payloads

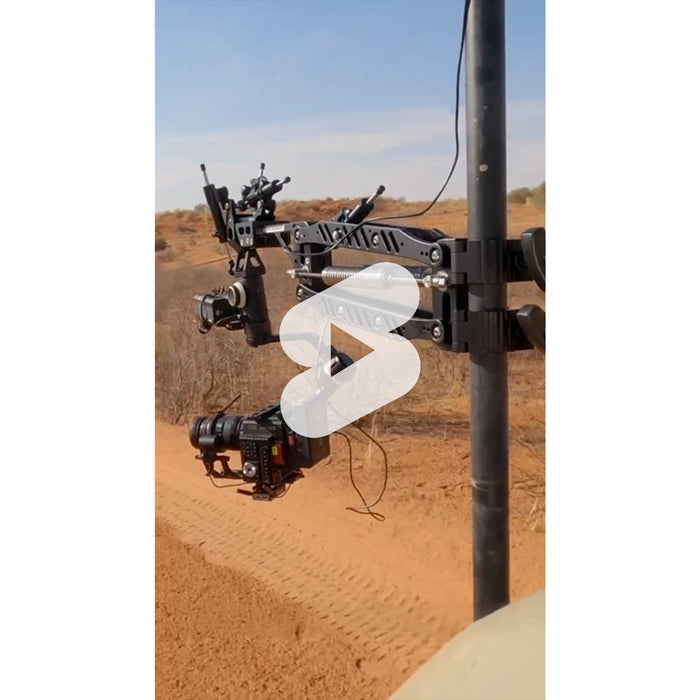

AIRWAVE ARM AROUND THE WORLD

Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)rm (5-30kg)
Proaim Airwave Vibration Isolator Arm (5-30kg)
delivery

Guaranteed Fast Delivery
For all orders
customer service

Quick and Efficient
Customer service
easy returns

Easy Returns
Up to 30 days
warranty

1-Year Warranty
On All Products
Customer Reviews
5.0 Based on 1 Reviews
5 ?
100%
1
4 ?
0%
0
3 ?
0%
0
2 ?
0%
0
1 ?
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
P
02/12/2021
Peter

Best Budget Option

The arm works great for vehicle-to-vehicle shots. Getting the correct balance and pressure is a little tricky at first. Best budget option on the market.

Proaim Airwave Vibration Isolator Arm (5-30kg)
Was this helpful?  0    0

Q&A

Ask a Question



  • Can i use Proaim Airwave Vibration Isolator Arm (5-30kg) with zhiyun crane 3s pro?

    Yes, you can mount the zhiyun crane 3s pro using the Proaim Quick Release plate for hand-held Gimbals (SKU: P-QRG)

  • I have Zhiyun Crane 3S Pro. Can i use Proaim Airwave Vibration Isolator Arm?

    Proaim Airwave Vibration Isolator Arm is compatible with Zhiyun Crane 3S Pro.  In order to use this gimbal with the Airwave, you would need a Proaim Quick Release plate(P-QRG)

  • What is the difference between VI-252-00 and VI-ARWV-530?

    The main different between both the items are:
    VI-252-00 comes only with Vibration Isolator Arm whereas VI-ARWV-530 comes with Vibration Isolator Arm & Front Section with 3-way Damper System.

  • Does the VI-252-00 take 30kg out of the box?

    The springs installed take a maximum of 15kg. But you can purchase an additional spring set VI-252-02, which will let you mount between 15 and 30kg payloads.

    Link for the Spring :- https://www.proaim.com/products/airwave-15-30kg-heavy-duty-spring-set
