Precisely Control The Movement Of Slider At Your Fingertips!

01.

HIGHLY FUNCTIONAL
Control the movement of your slider at your fingertips with Proaim’s Advanced Motion Control System, which is exclusively designed to use with Proaim Curve-120, Curve-180, Curve-N-Line, and Line Camera Sliders.
The controller lets you program precise, smooth, incremental camera movements best suited for the interviews, establishing shots, and more.

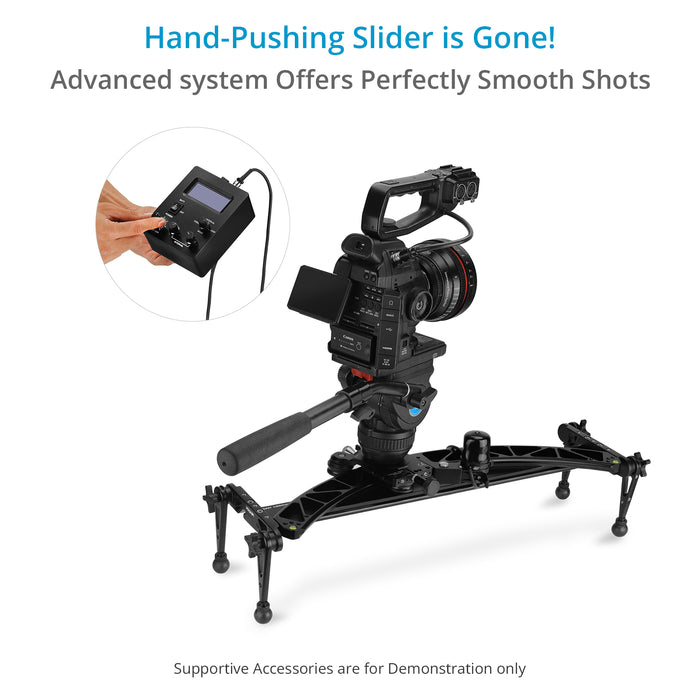

Likewise, when combined with the slider, this versatile system facilitates fluid motorized slides, thus creating dynamic video and photography sequences.

Proaim Advanced Motion Control System
Proaim Advanced Motion Control System

02.

EFFORTLESS, GLIDING MOVES

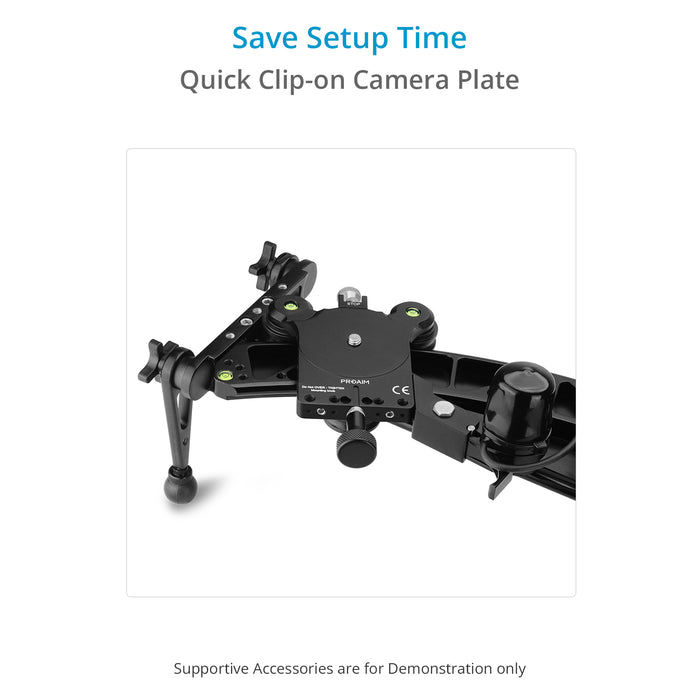

The firm quick-release camera plate is compatible with straight and curved track sliders and connects easily without removing the end feet.

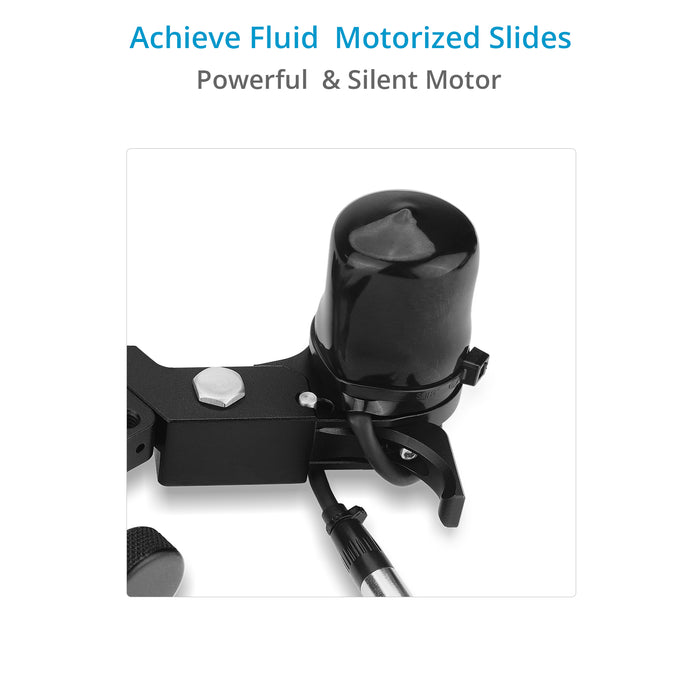

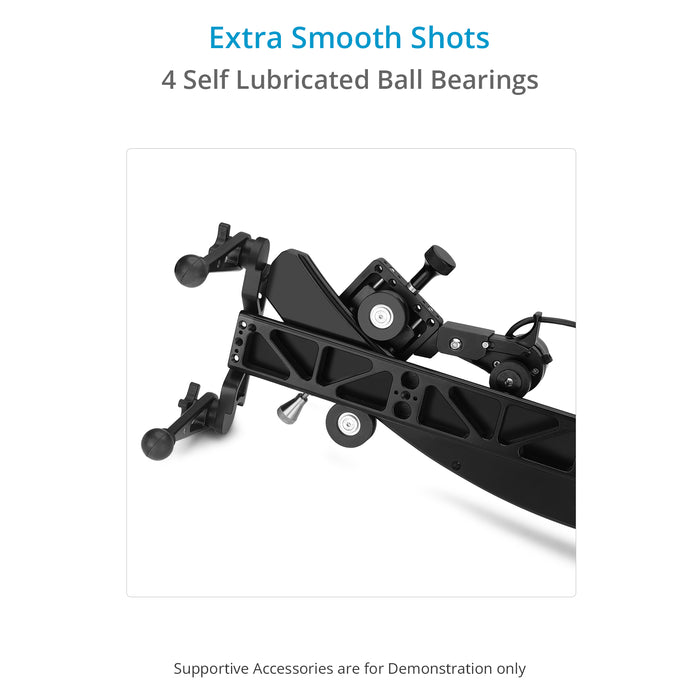

The camera plate, powered by a quiet precision motor, glides effortlessly with a 5kg / 11lb payload using high-end sealed bearings.

03.

PRECISE MOVEMENT CONTROL

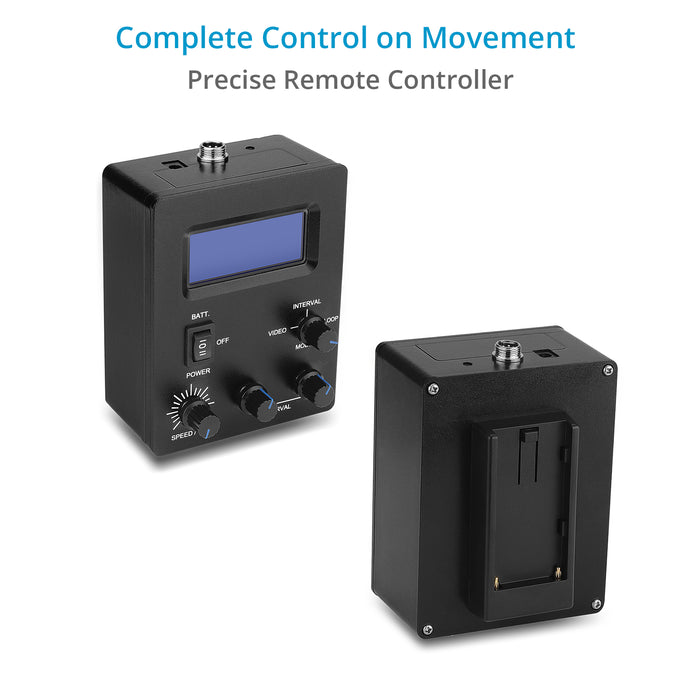

Using the dials of the advanced remote controller, you can program a slide with specific functions and modes.
The controller operates in three different modes:
i. Video/Normal Mode: It lets you create manual video moves from the controller. The farther you turn from 0-10, the faster it goes (10 being the maximum speed).
ii. Interval Mode: This allows you to set the frequency of moves. It includes three adjustable parameters:
a.) Length (in mm) – Adjust the total length of camera travel on the slider from 600/900/1200 mm, through the Speed/Direction dial.
b.) Distance (in mm) – Decide the Distance of each segment, from 1-300mm, to be covered on the total chosen length through the left Interval dial.
c.) Pause (in sec) – Set the period of short breaks, from 1-999 seconds, according to your needs while the camera travels on chosen length through the right Interval dial. The number of breaks is automatically aligned when both Length & Distance parameters are tuned and are achieved by advanced algorithms programmed within the controller.
iii. Loop Mode: You can use the looping feature to automatically move your camera back and forth to focus on your subject. Adjust the speed from 0 to 10, which goes from end to end on the Speed/Direction dial.

Proaim Advanced Motion Control System

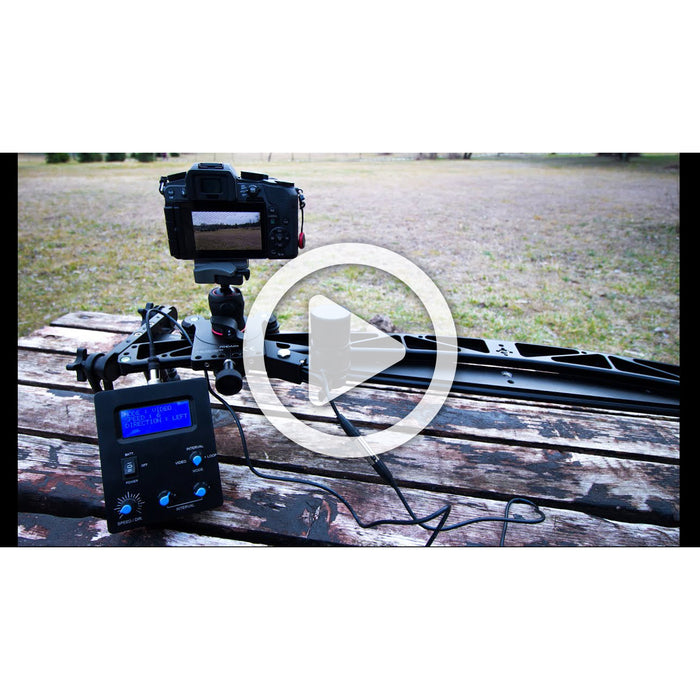

IN-ACTION VIDEOS

SPECIFICATIONS

MOTION CONTROL

Construction

  High-grade CNC Aluminum

Motor

  30RPM 12V

Noise level of the Motor

  <40dB

Load Capacity

  5kg / 11lb

Camera Mounting

  1/4"-20 Screw
  1/4" to 3/8" Convertible Screw included

Dimensions

Proaim Advanced Motion Control System

Product Weight (Without Packing)

  1.8kg / 3.9lb

Product volumetric Weight (With Packing)

  2.8kg / 6.2lb

REMOTE CONTROLLER

Battery Input Power

  7.2-12V DC

Adapter Input Power

  100-240V 1A 50/60Hz

Output Power

  12V 3A

On/Off Switch

  Yes

Battery Plate

  Yes

Battery Working Hours

  2 hours (Battery is not included)

Speed

  2 ft Curve-N-Line Slider
  Minimum: 48 sec
  Maximum: 11 sec
  3 ft Curve-N-Line Slider
  Minimum: 1 min 21 sec
  Maximum: 17 sec
   4 ft Curve-N-Line Slider
  Minimum: 1 min 36 sec
  Maximum: 22 sec
  Curve-120 Slider
  Minimum: 1 min 18 sec
  Maximum: 13 sec
  Curve-180 Slider
  Minimum: 2 min 26 sec
  Maximum: 26 sec
  2 ft Line Slider
  Minimum: 48 sec
  Maximum: 10 sec
  3 ft Line Slider
  Minimum: 1 min 29 sec
  Maximum: 17 sec

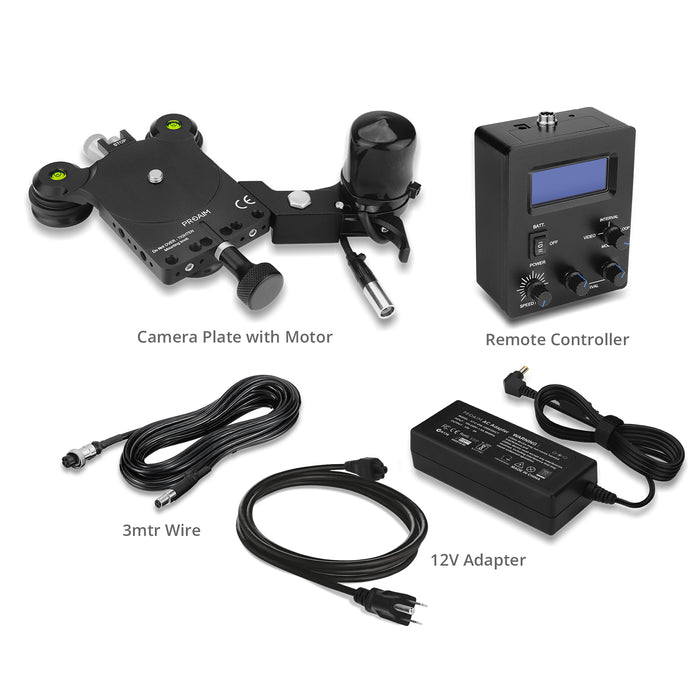

IN THE BOX

Proaim Motion Control System
Remote Controller
3 meter wire
12v Adapter

USER MANUAL

  Proaim Advanced Motion Control System

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Q&A

Ask a Question



  • In "loop" mode, does the motor ramp down gently to zero, and then reverse? Or is it a "hard reverse"?

    In the loop mode motor ramps down gently and reverse.

  • Do you have a manual for this remote?

    Yes

  • What is the size of the camera screw on the camera plate?

    By default the camera plate comes with a screw size of 1/4". We provide a 1/4 to 3/8 Convert Screw Adapter BS-100 with which the camera screw can be easily converted to 3/8".
