Mount Your Camera On A Shoulder Rig Or A Tripod With

Proaim 19mm Camera Base Plate & Dovetail Tripod Plate.

01.

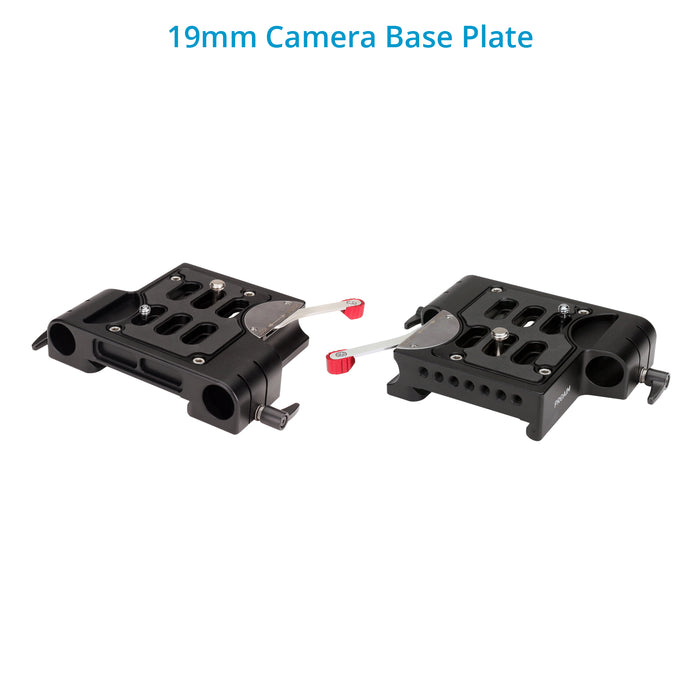

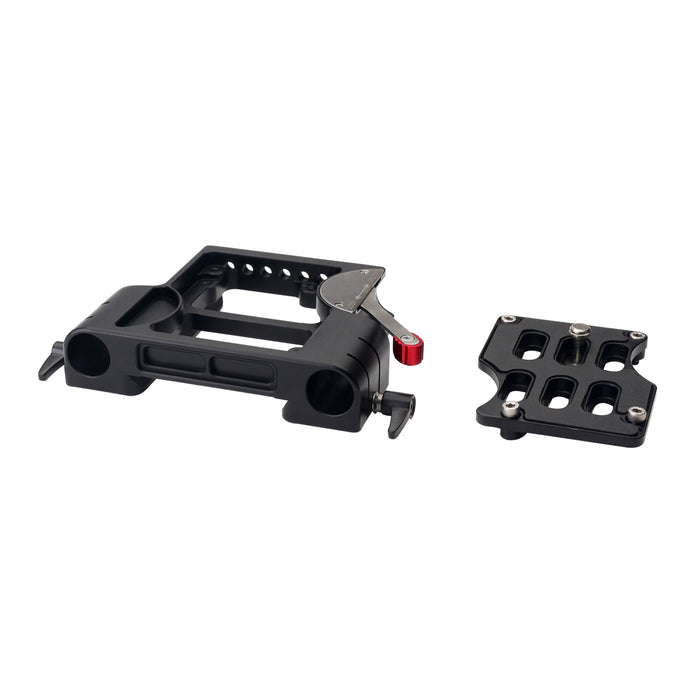

PROAIM 19MM BASE PLATE

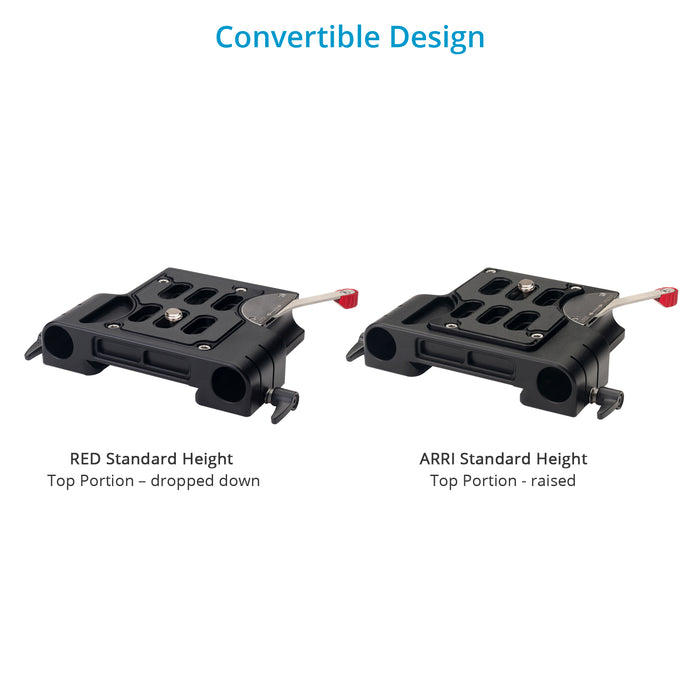

The Proaim 19mm Base Plate is an ARRI standard bridge plate with 19mm studio offset spacing and rods spaced 104mm center-to-center. This Industry standard spacing ensures proper alignment for all of your accessories. It can be converted from RED standard height to ARRI standard height, making it compatible with any type of camera rig. The rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacing.

Proaim 19mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)
Proaim 19mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)

02.

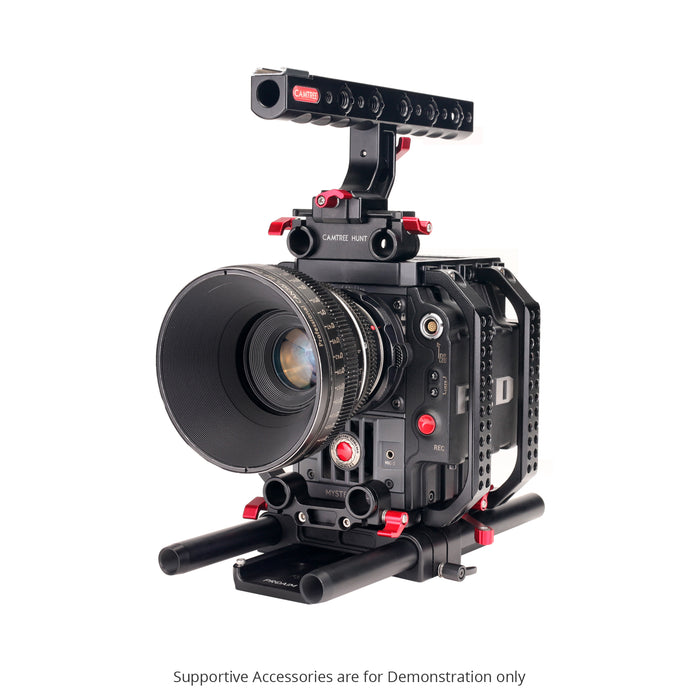

CAMERA COMPATIBILITY
It is compatible with all DSLR Video cameras including Blackmagic Panasonic RED WEAPON/SCARLET-W/RAVEN/EPIC/SCARLET.
When combined with Proaim Canon Base plate, it adapts cameras like Canon's C100 and C300 Mark II/C100/C300/C500.

03.

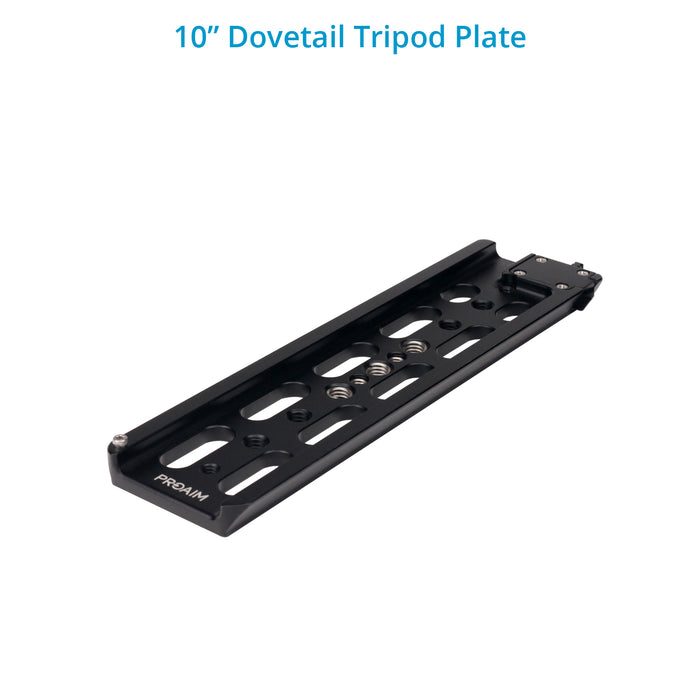

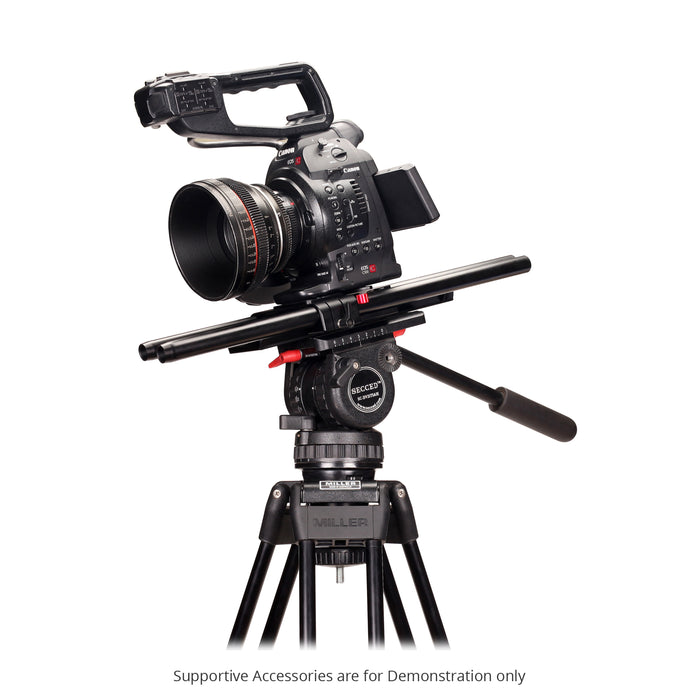

PROAIM DOVETAIL TRIPOD PLATE
The Dovetail Tripod Plate is an 10" ARRI standard plate with safety catches on each end. It attaches natively to OConnor 2060, OConnor 2575, OConnor 120EX and Sachtler Cine 30. You can also attach it to most other tripod heads via screws.

Proaim 19mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)

SPECIFICATIONS

Construction

  High-grade CNC Aluminum

Weight

  713 gram (1.57 lb)

Dimensions

  36 x 160 x 260 mm ( 1.4 x 6.2 x 10 in)

IN THE BOX

Proaim 19mm Camera Base Plate
Proaim Dovetail Tripod Plate
(2) 3/8”-16 screws
(2) 1/4”-20 screws
