Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

For DSLR Video Camera Setups up to 25kg / 55lb

Original price US $1,199.00 - Original price US $1,199.00
Original price
US $1,199.00
US $1,199.00 - US $1,199.00
Current price US $1,199.00
SKU : P-WV-2PL-SD

POWERFUL, SIMPLE & AFFORDABLE

Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!

01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.
Proaim 10' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

02.

EXPERTLY CRAFTED JIB
The Jib has a camera head mount that accepts 75mm/100mm fluid heads.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.
Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.
Hi-tensile weight closers keep the weight discs intact for perfect balance.

03.

ADAPTABLE LENGTHS
This travel-friendly Jib telescopes from the backside, which helps in the balancing of Jib. You can adjust the arm length from 6 feet to 10 feet.
The ability to change the length allows you to use the Crane in various scenarios.

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

04.

SOLID FOUNDATION FOR WAVE 10' CRANE
This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg/176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg/1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.

05.

MOST AFFORDABLE JIB SOLUTION
For camera rigs under 25kg / 55lb, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 10' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price..

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

06.

SIMPLIFIED TRANSPORT
The Crane System comes in high-quality bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

IN-ACTION VIDEOS

SPECIFICATIONS

10' WAVE-2 JIB

Construction

  High-grade Aluminum & Stainless Steel

Load Capacity

  up to 25 kg / 55 lb

Tripod mount

  100mm diameter

Camera Mount

  Flat base plate for Pan tilts heads
  100mm and 75mm Bowl head (with ring)

Telescopic Range

  6 feet to 10 feet

Pan Radius

  360 Degrees

Jib Pan Lock

  Yes (via pan friction knobs on U-Hub)

Jib Tilt Lock

  No

Camera Plate Tilt Lock

  Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)

Self balance

  7 kg/15 lb

Balancing Chart

 Camera Weight

15kg

20kg

25kg

 Counter Balance

30kg

40kg

50kg

 Measured Length

305cm

259cm

208cm

 Length from U Fork to Camera Plate

201cm

172cm

143cm

Note : The counterweight required to balance the jib will be approximately twice the weight of the camera setup. However, if the jib sections are collapsed, it may require fewer counterweights than is usually needed to balance the jib.

CST-100 TRIPOD STAND

Construction

  High-grade CNC Aluminum

Load Capacity

  up to 80 kg /176lb

Diameter of Tripod Tubes

  20mm and 14mm

Length

  Maximum - 60 inches
  Minimum - 34 inches

Collapsible Height

  6.50 kg / 14.33 lb

Package Weight

  11.4 kg / 25 lb

Box Dimensions (LxWxH)

  39.7 x 10.2 x 9.5”

ALUMINUM SPREADER

Construction

  High-grade CNC Aluminum

Compatibility

  All Tripods with Twin Spiked Feet

Load Capacity

  up to 400kg / 880lb

Spreader Height

  50mm / 2inches

Build-up Radius

  41 – 66cm / 16 – 26inches

Weight

  2.47kg / 5.44lb

Package Weight

  3kg / 6.61lb

Box Dimensions (LxWxH)

  55 x 18 x 14"

PORTABLE DOLLY

Construction

  High-grade Mild Steel

Weighing capacity

  up to 500kg/ 1100 lb

Tripod Foot Compatibility

  Spiked Feet

Locking Wheels

  Yes

Weight of Product

  10.7kg / 23.5lb

Package Weight

  11.65 kg / 25.68 lb

Box Dimensions (LxWxH)

  23.4 x 10.7 x 9.4"

IN THE BOX

  Proaim10' Wave-2 Video Camera Crane Jib
  Proaim CST-100mm Bowl Tripod stand with Aluminumn   Spreader (CST-100-01)
  Proaim Portable Dolly (P-PRT-D)
  75mm Conversion Ring
  100mm Bowl Adapter
  Flat base plate
  Storage Bags


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products


Customer Reviews
5.0 Based on 1 Reviews
5 ?
100%
1
4 ?
0%
0
3 ?
0%
0
2 ?
0%
0
1 ?
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
TF
09/13/2017
The f.

EXCELLENT!!

Hey, only one word to describe this jib and the company that makes it. EXCELLENT!!! To say they take care of their customers is an understatement. I had a mix up with my shipment and as soon as I reached out to them and told them my issue, in less than 3 days, they rectified the matter and I received a new shipment. Wow! And I used this Jib on a short film the very next day. Beautiful product and well made. Solid and feel good when you handle it. Steady and smooth movement. I have no complaints here. This company has a new fanboy. Thank you, I TOTALLY recommend this jib for any cinematographer looking for a mini crane. STRONGLY recommend it...




  • I wish to purchase a DJI 4D to mount on a pontoon boat to get the shots going down the river, does your P-WV-2PL-SD Jib will be perfect choice.

    "Yes, you can use the Proaim Wave Plus Jib crane P-WV-2PL-SD on a Pontoon boat, but you have to secure the tripod feet on the boat.

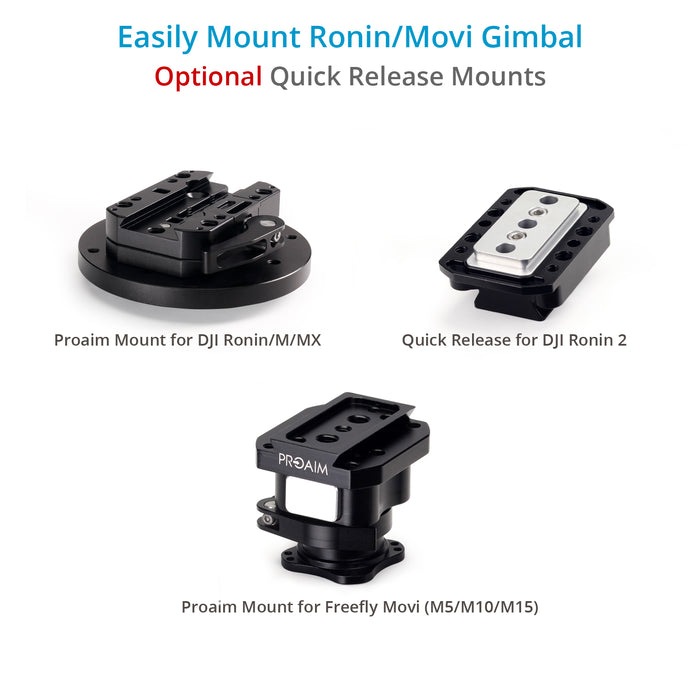

    And for Ronin DJI 4D, you can mount it on the Proaim Wave Plus Jib Crane P-WV-2PL-SD Jib with the help of Proaim Mount for DJI Ronin QR-WV-710 & Proaim Quick Release plate P-QRG.  Here are the links for your reference:
    QR-WV-710: https://www.proaim.com/products/proaim-mount-for-dji-ronin-m-mx
    P-QRG: https://www.proaim.com/products/proaim-quick-release-plate-for-hand-held-gimbals

  • Concerning the Proaim 7\' Wave-2 Jib Crane, what \"standard\" counter weights does it use?

    The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu

  • What is the size of the central screw used to attach this jib with the tripod stand

    The size of the central screw used to attach this jib with the tripod stand is M10.

  • What is the exact dimension from the centre of the bolt between the wheels?

    The distance between one wheel to another is 80cm. Here is the complete dimension of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D:
    https://prnt.sc/tBwFkvMn0OFP

  • In this Lineo portable tripod dolly are the wheels replaceable with track wheels?

    Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels.

  • "I'm considering Proaim 10' Wave-2 Jib, for use with the DJI RS3 pro gimbal as a pan-tilt head. Is DJI's ronin expansion base kit plate compatible with the flat base plate of the Wave 2 jib, or do I have to buy something extra make a DIY-solution?

    To mount DJI RS3 Gimbal with Wave 2 jib crane you need Proaim Quick Release Mount (QR-WV-710) and Proaim Quick Release plate (P-QRG)
    Link for QR-WV-710: https://www.proaim.com/products/proaim-mount-for-dji-ronin-m-mx
    Link for P-QRG: https://www.proaim.com/products/proaim-quick-release-plate-for-hand-held-gimbals
