01.
BACKBREAKER HAND-HELD WORK – NOT ANYMORE
We understand extended handheld camerawork can prove to be a backbreaker. But if you have a Body Support rig, it solves your problem up to a great extent.

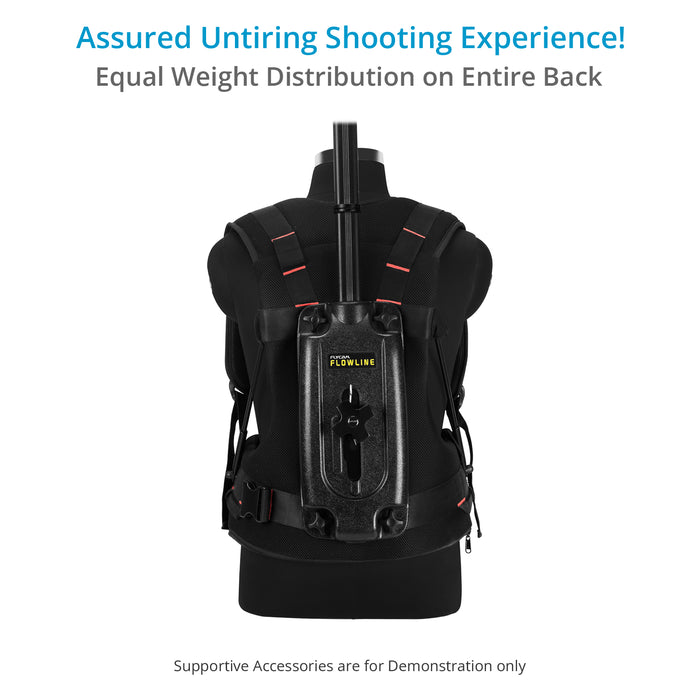

Flycam Flowline rig takes the weight off your shoulders & arms and distributes it across the entire back which makes it convenient for you to shoot for a longer period without getting tired.
As there is less pressure on your arms now, you’ll be able to capture more stable & smoother shots.
Note: It is recommended to attach the minimum required weight (3kg/6.6lb) for pulling down the balancing rope to ensure proper operation of your Flycam Flowline system.
Assured Smooth Stabilized Shots & Comfort All Day Long!
02.
IMPORTANT NOTE
You might receive the Placid arm paired with one of the following vests:
Vest 1: Features a tension adjustment knob and a dedicated hole for easier Placid attachment. It also has a shorter, one-piece extension for a streamlined design.
Vest 2: Utilizes a tension adjustment lever and requires flipping the extension for Placid attachment. It has a longer, two-piece extension for added adjustability.
No need to worry! Whichever version you receive, the Placid Arm is fully compatible with both vests and offers similar functionality.
03.
PERFECT VERTICAL STABILIZATION!
The Flycam Placid 2-axis Spring Arm is a perfect companion for your flowline rig in getting a Smooth Shot. It adds an additional vertical stabilization & eliminates errors caused by the operator’s motion.

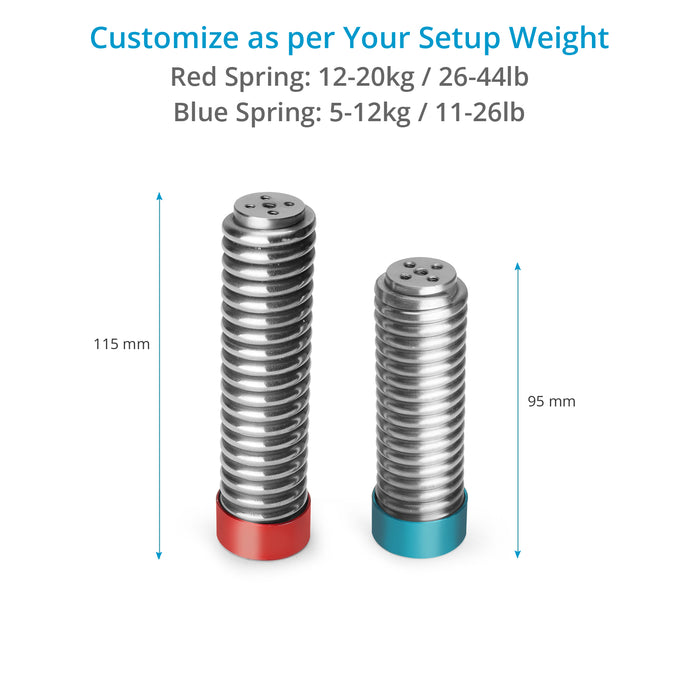

It adapts a varied range of setups weighing b/w 5kg/11lb to 20kg/44lb. It comes with two springs for variable payloads. You can interchange them as per the weight of your camera setup.
You can balance the setup & adjust the spring tension by adjustment knob.
04.
QUALITY THAT LASTS LONG
The body vest is made up of strong yet ergonomic fabric that has minimal wear & tears & stays for long.
The arm pole of the flowline rig & the placid arm are constructed with high-grade Aluminum Alloy that ensures stability, strength & durability.
The Springs used in the Placid are made up of Stainless Steel that certifies complete corrosion resistance & long-term value.
IN-ACTION VIDEOS
SPECIFICATIONS
FLOWLINE
Flowline Weight
3.6 kg/8 lb
Shoulder Mount Rig Weight
1.8kg/3.96 lb
Height
Mounted: 100 cm
Folded: 60 cm
Minimum Load Capacity
3 kg/6.6 lb
Maximum Load Capacity
7.5 kg/16.53 lb
Suspension line length (Rope)
152.5 cm
Suspension Line Material
3mm Nylon
Top Bar Length
560mm

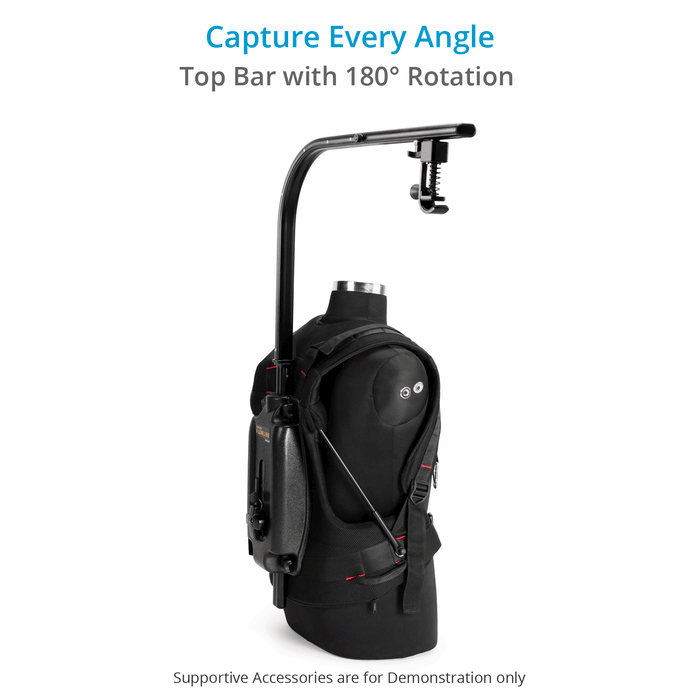

Top Bar Rotation
180°
Min. waist hip strap length
81 cm
Max. waist hip strap length
125 cm
Tilt Range
40° Up/ Down
Side to Side Movement
180°
PLACID ARM
Construction
High-grade Aluminum, Carbon Steel, Stainless Steel, EPDM rubber
Height
205mm
Width
395 mm
Depth
65mm
Max Load
5kg/ 11lb
Weight of product
1.80kg / 3.96lb
Foam Packing Dimension
LxWxH : 42cmx20.5cmx12cm
Weight(With packing)
2.40kg/5.29lb
IN THE BOX
FLYCAM Basic Flowline with 180° Rotation
FLYCAM Flowline Placid Two Axis Spring Arm (FLCM-FLN-PLA))
2 x Tension Spring
Safety shock cord

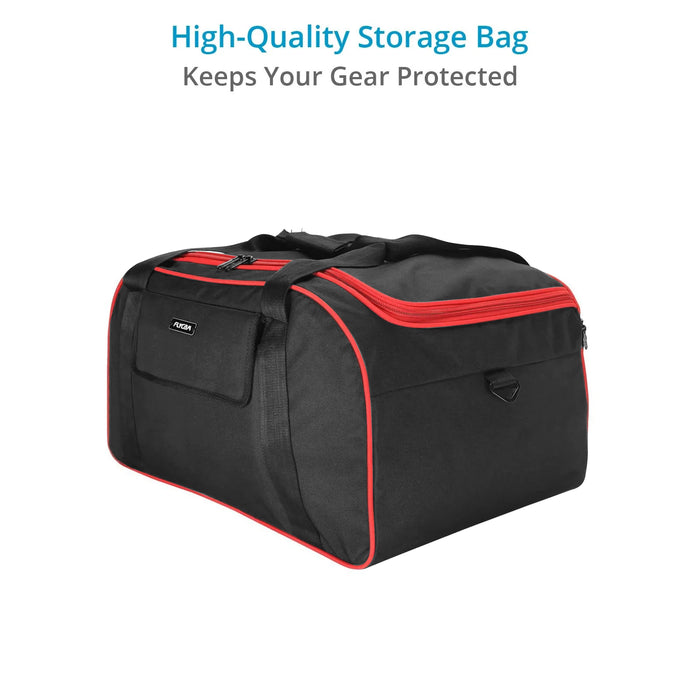

Protective Storage Bag
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Efficient & Comfoartable
I am quite impressed with the FLYCAM Flowline. I have been looking for the perfect equipment for my travels and other hobbies. The best quality about the FLYCAM is its vest. Unlike a GoPro, which is small and affordable for the average person, this invention gives people who are into filmography a great combination of efficiency and ease. As someone who has been investing more into cameras and filming, I have enjoyed this project with my own portfolio.
Everything is SUPER well made though
Dig the general rig . Everything is SUPER well made though, so I gotta have it to them for that.
Q&A
Ask a Question-
What is the size and length of the marked knob of Basic Flowline Stabilizing Support Vest with 180¡?
M4 X 12MM
